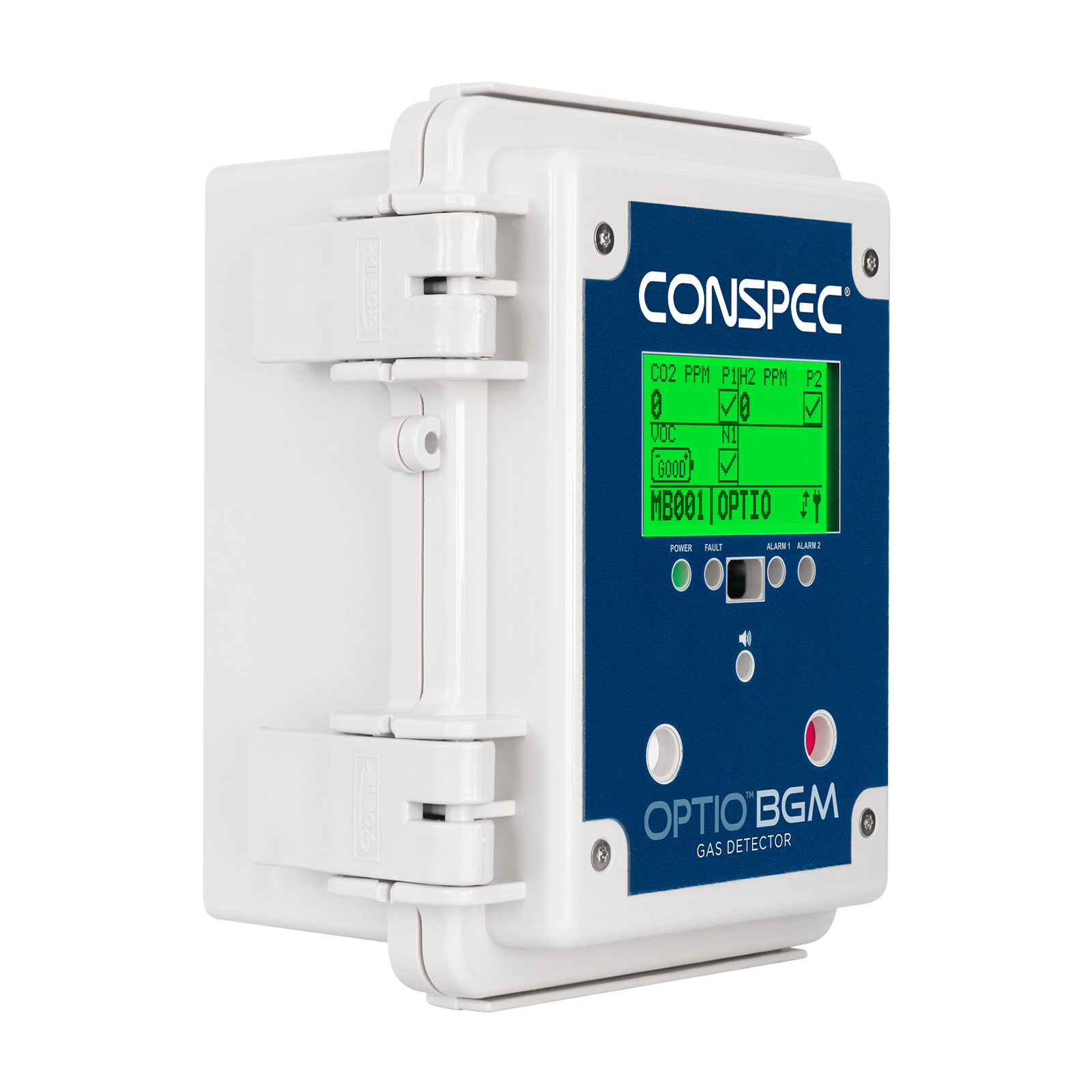

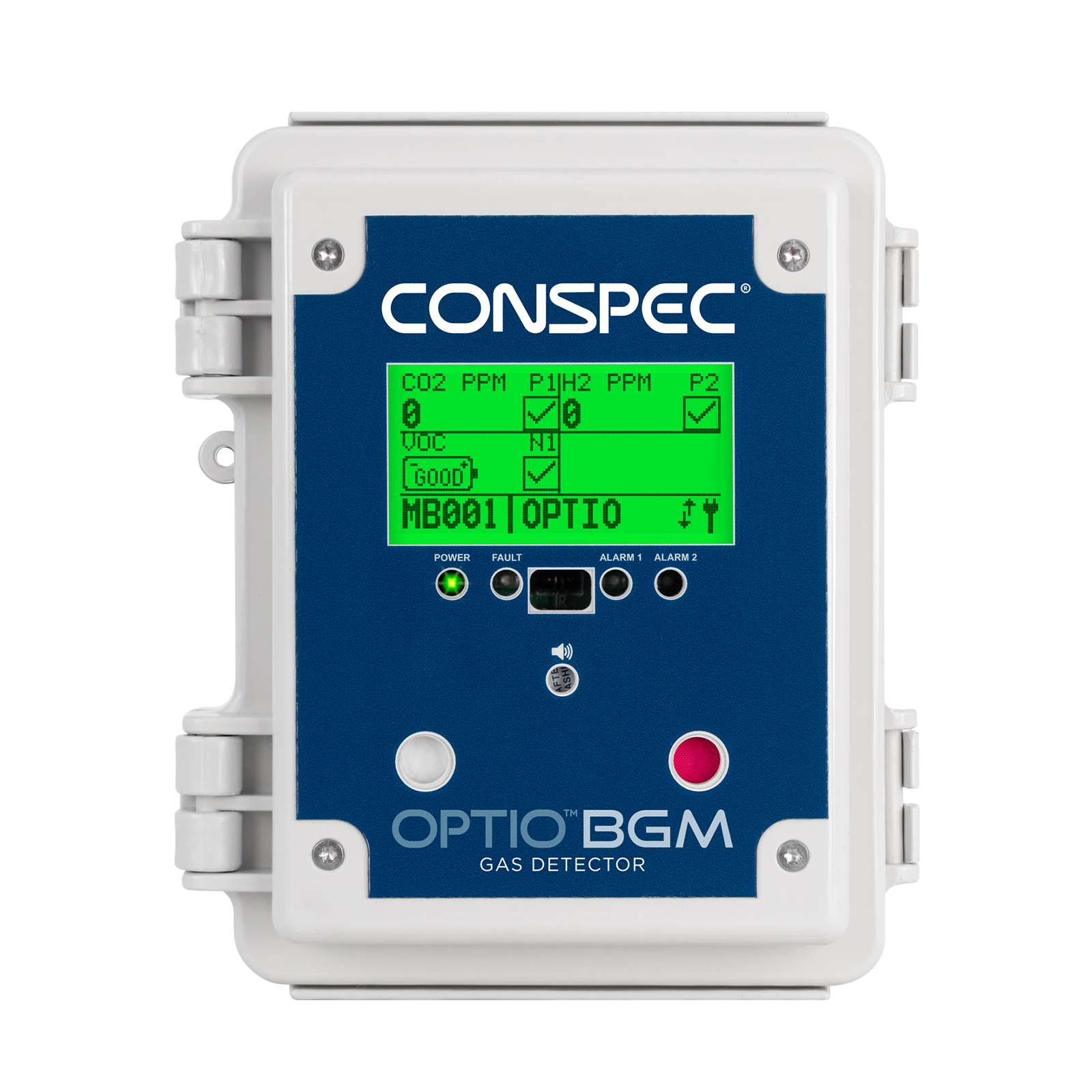

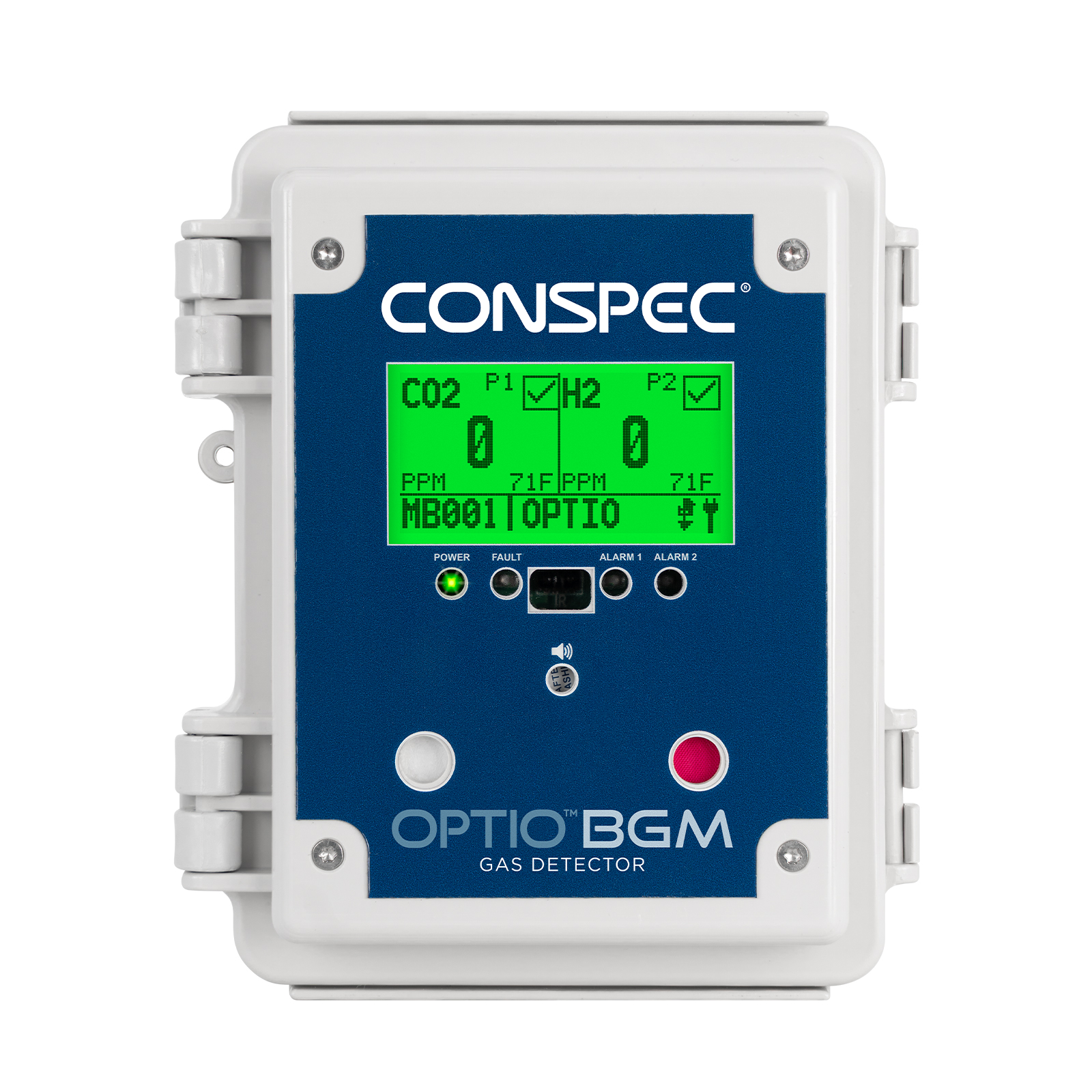

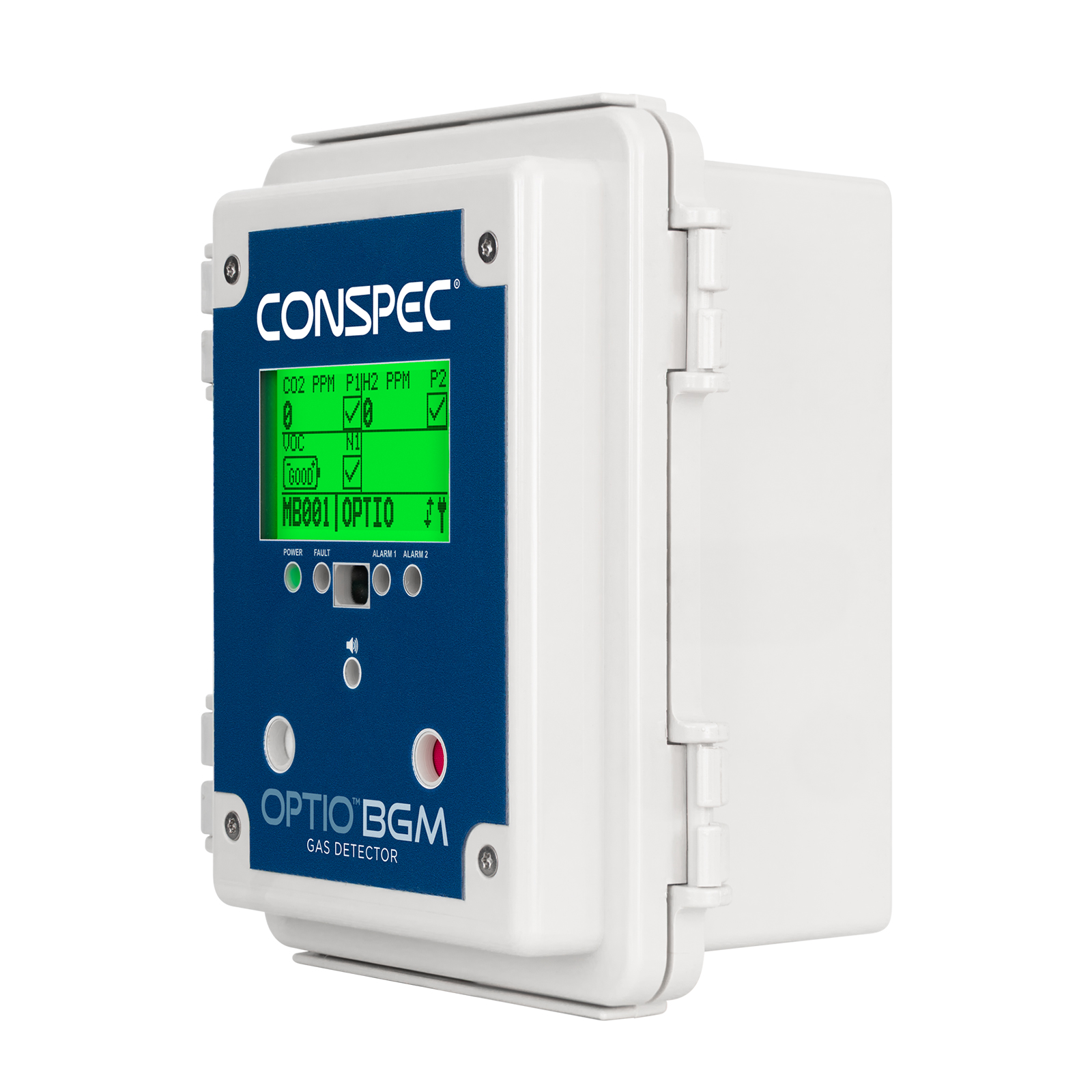

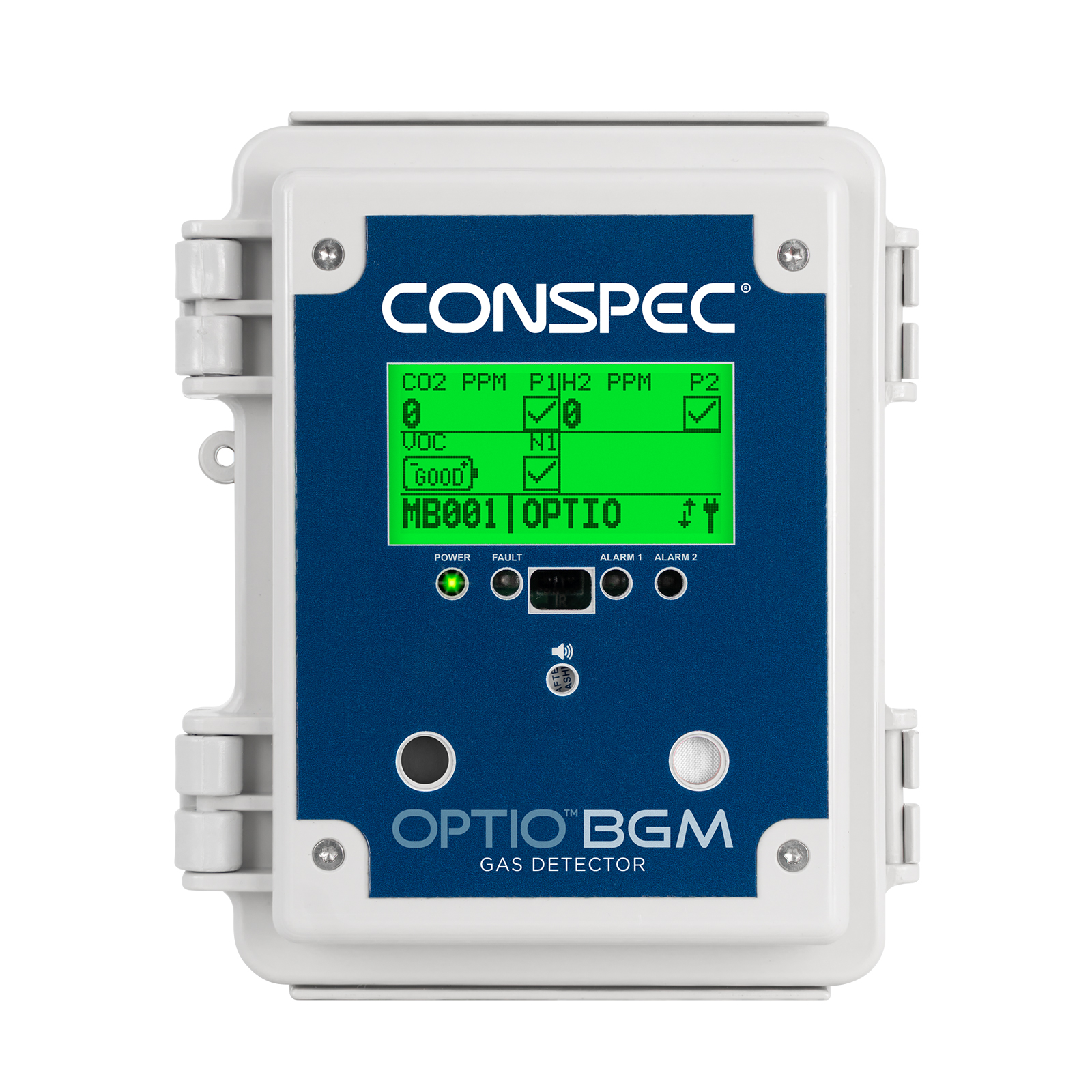

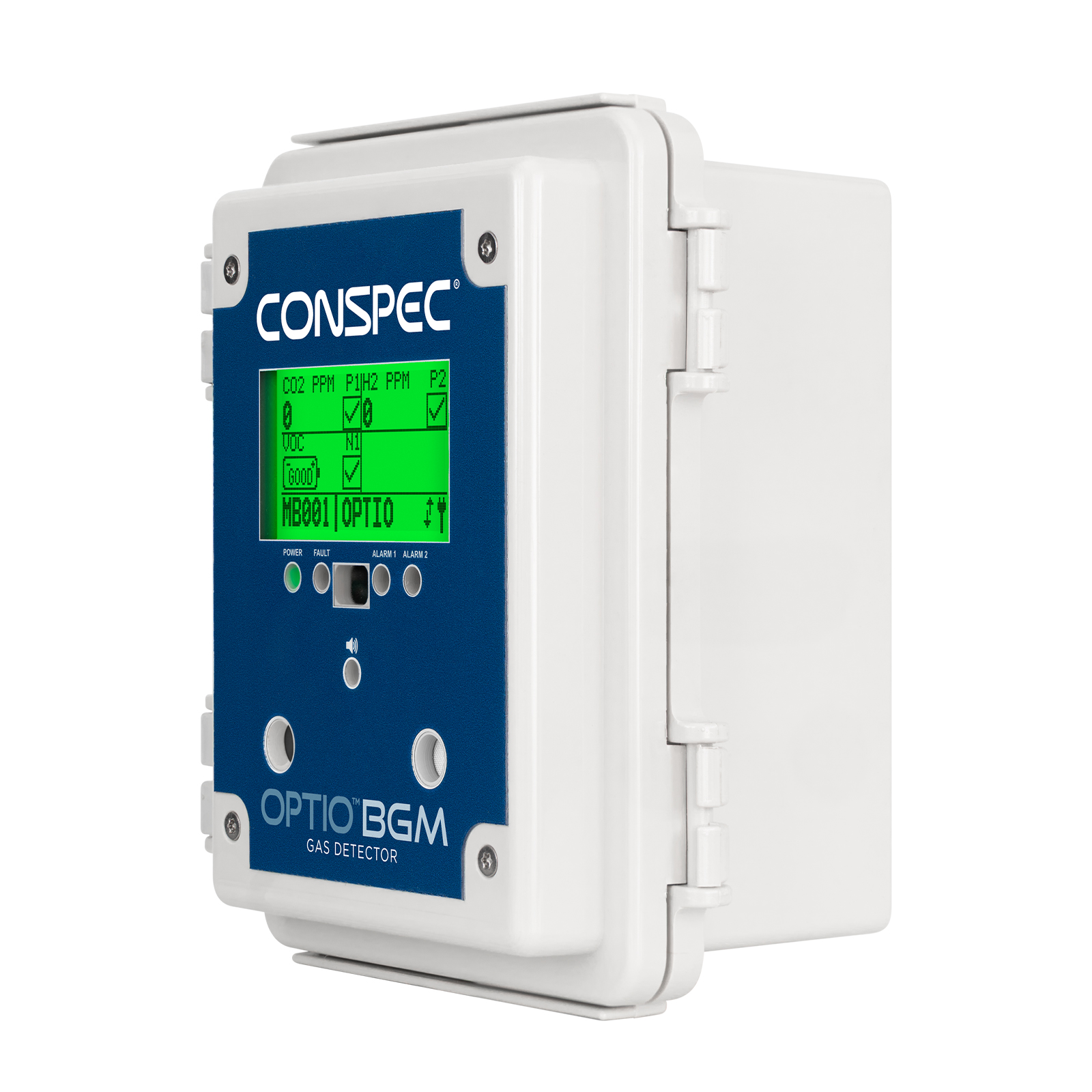

Optio™ BGM

MULTI-GAS MONITOR FOR LI-ION BATTERY SAFETY​

The Optio BGM is a multi‑gas detector engineered to monitor Li‑ion battery systems for early signs of thermal runaway. The Optio BGM incorporates three dedicated sensors to continuously monitor for carbon dioxide (CO2), hydrogen (H2), and volatile organic compounds (VOCs) to detect batteries which may be venting before visible smoke or flame appears. Onboard relays, 4-20mA outputs, and Modbus communication makes it easy to integrate the Optio BGM with the Primus V Controller as a part of a building’s overall safety solution.
PRODUCT FEATURES
  • Primus V Integration – Multiple Optio BGM detectors can connect to a Primus V controller for centralized monitoring, building automation system integration, and fan, louvre, or exhaust control.
  • Long Sensor Life – Designed for extended operational longevity, reducing replacement frequency and lowering maintenance costs.
  • Self-Diagnostic Function – Continuously monitors internal health to ensure reliable system performance and early fault detection.
  • Automatic Reset – Recovers seamlessly after power loss, minimizing manual intervention.
  • Dual Onboard Relay Contacts – Provides two built-in relays for direct control of external devices and alarm functions.
  • Optional Dual 4–20 mA Outputs – Offers two analog outputs for integration with building management or automation systems.

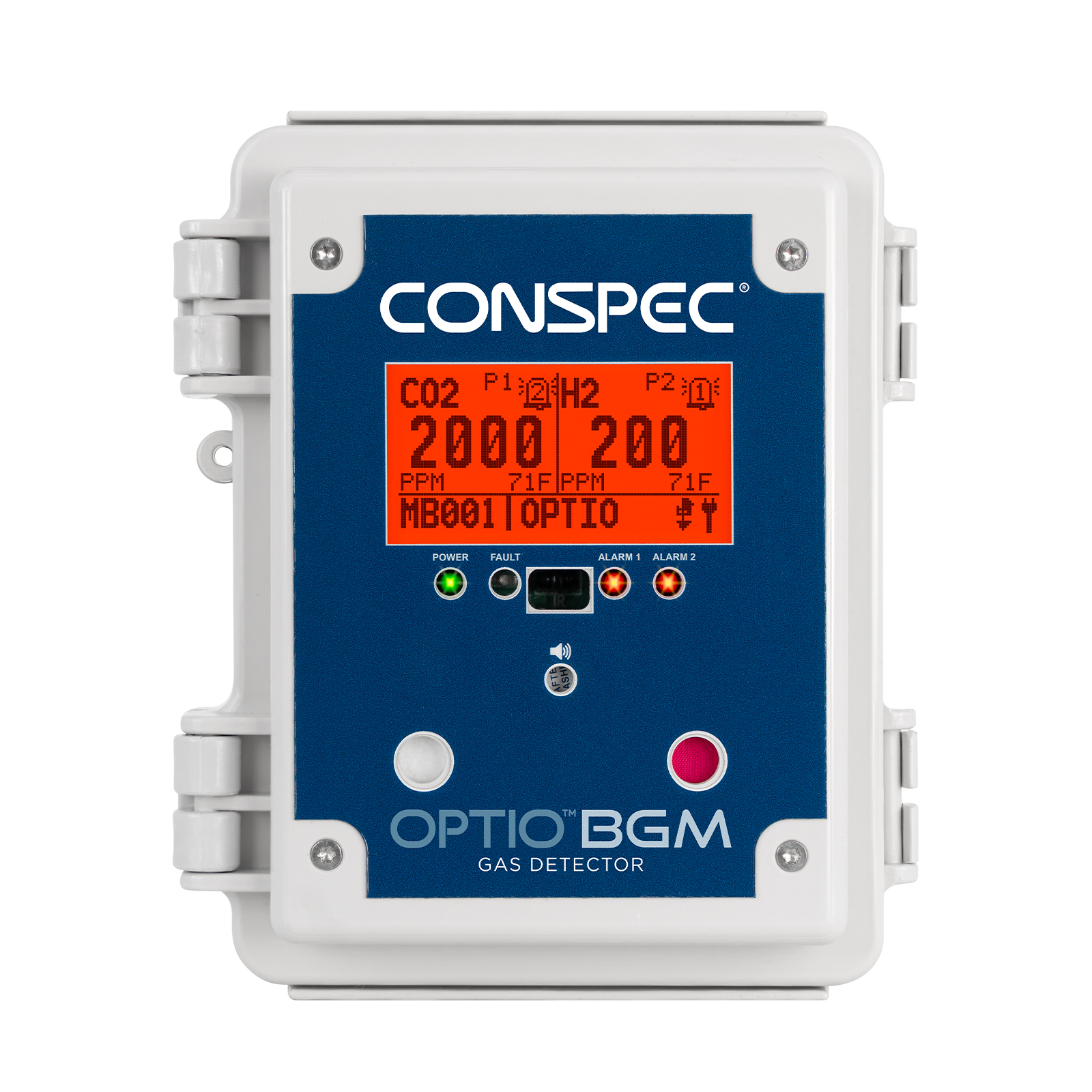

  • Onboard 85 dB Alarm – Delivers a loud, clear audible warning to alert personnel to hazardous conditions.
  • Bright LCD Display – High-visibility screen ensures clear viewing of gas readings and status information in various lighting conditions.
  • Hydrogen (H2)
  • Carbon Dioxide (CO2)
  • Volatile Organic Compounds (VOCs)

Sensor Configuration

  • CARBON DIOXIDE (CO2)
    • Type: IR
    • Range: 10,000 ppm
    • Life Expectancy: > 15 years
    • Response Type: 30 s
    • Accuracy: ± 75 ppm
  • HYDROGEN (H2)
    • Type: Electrochemical
    • Range: 1000 ppm
    • Life Expectancy: > 24 months
    • Response Type: < 40 s
    • Repeatability: < ±2%
    • Linearity:  < ±2%


Electrical

  • Operating Voltage: 120 VAC, or
    24 VAC / 24 VDC
  • Current Consumption:
    @ 12 V Imax = 60 mA, @ 24 V Imax = 32 mA
  • Output Signals:
    Two Dry Contact DPDT Relays
  • 5 A at 12 VDC, 2 A at 30 VDC, or 60 W
  • Two Optional 4-20 mA output (one for
    each sensor)


Mechanical

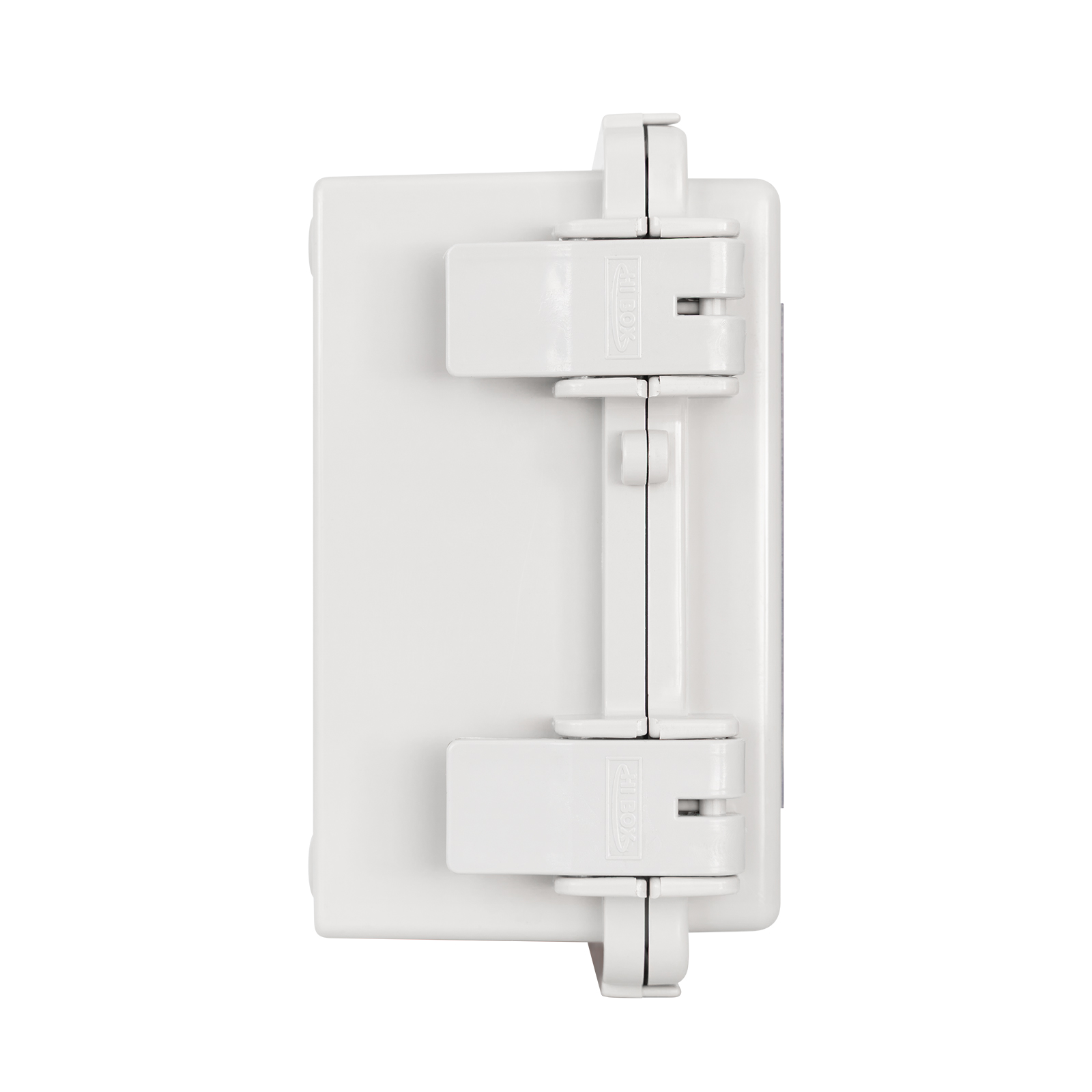

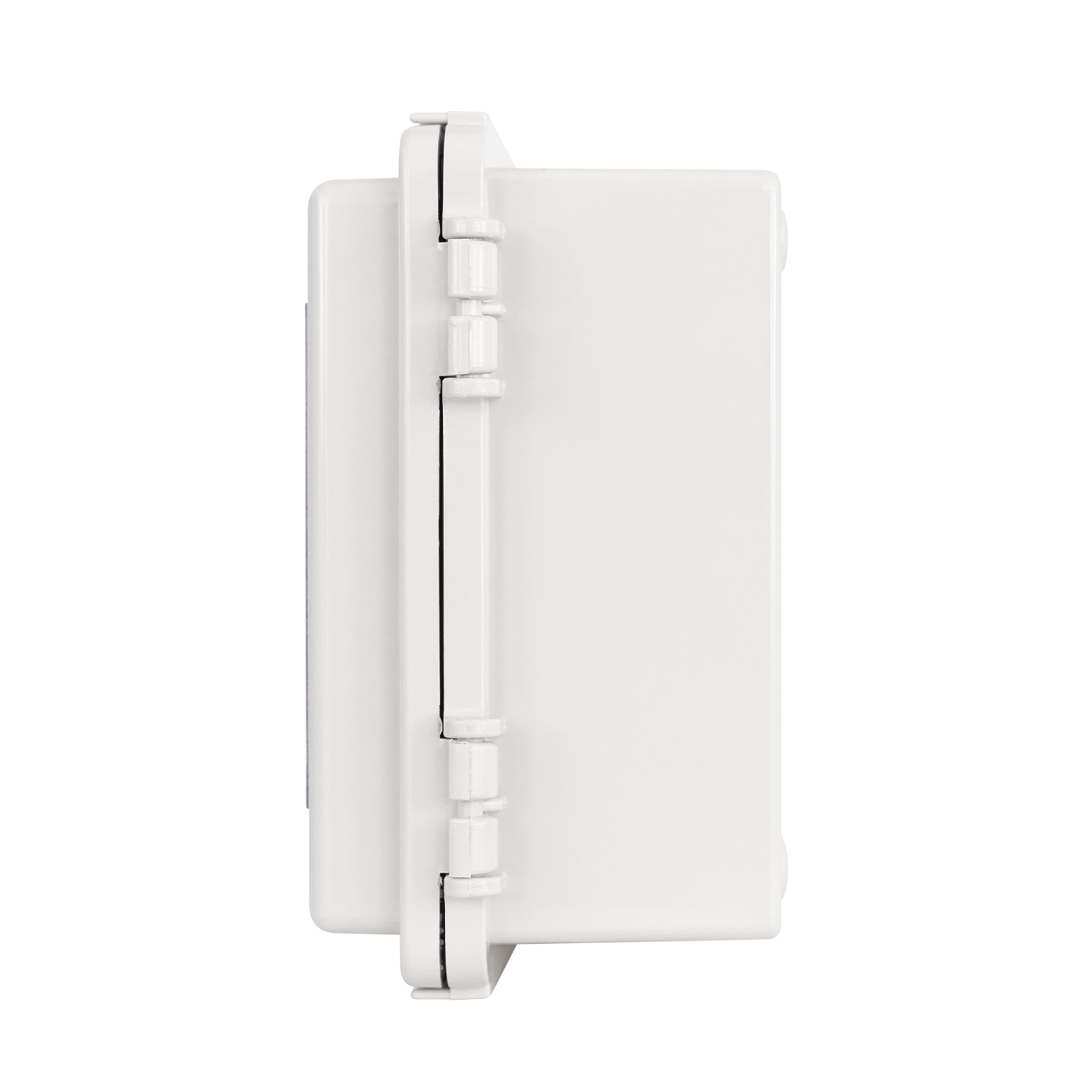

  • Enclosure: Polycase WH-02
  • Dimensions: 5.11 in × 3.93 in × 2.75 in
    (130 mm × 100 mm × 70 mm)
  • Weight: 0.60 lb (272 g)
  • Mounting: various options


Environmental

  • Operating Temperature: -4°F to +120°F (-20°C to +50°C)
  • Operating Humidity: 10-90% RH non-condensing
  • Temperature Compensation: full temperature range


Relay Operations

  • Relay 1 Operation (Factory default)
    • ON when: CO2, H2, or VOC sensor detects a gas level above alarm threshold
    • OFF when: CO2, H2, or VOC sensors are below alarm thresholds
    • Relay 1 has a 5 minute minimum ON duration
  • Relay 2 operation (Factory Default)
    • ON when: VOC sensor is in fault state
    • OFF when: VOC sensor is in normal, non-alarm state
    • Relay 2 has a 5 minute minimum ON duration


Includes one year standard warranty

  • Datacenters
  • Battery Rooms
  • BESS Containers
  • Boiler & Mechanical Room
  • UL Std. 61010-1  3rd Edition (pending)
  • CAN/CSA-22.2 No. 61010-1-12 3rd Edition (pending)
  • Calibration Kits
  • Replacement Sensor CO2
  • Replacement Sensor H2
  • Replacement Sensor VOC
  • Power Supply
  • IR Remote
