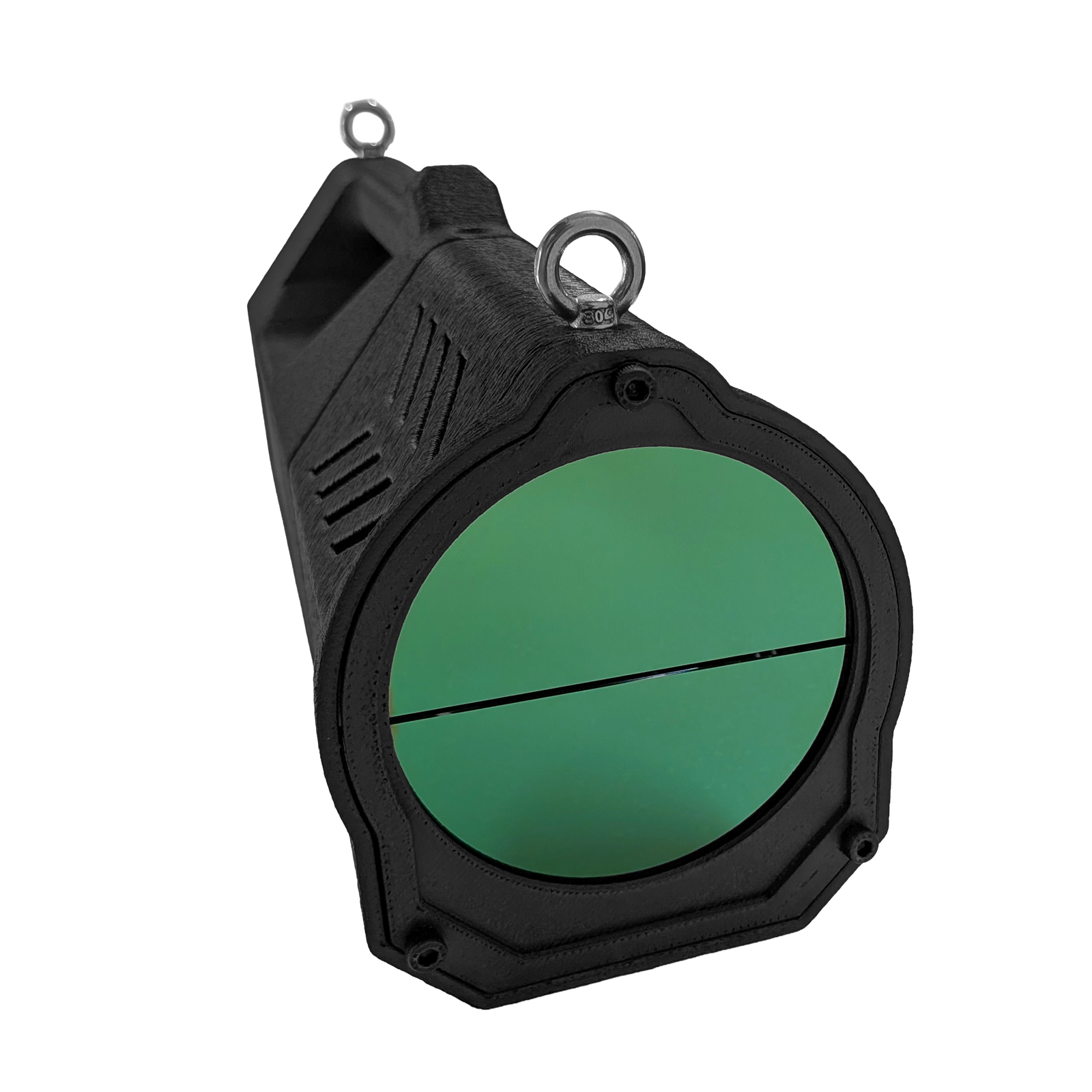

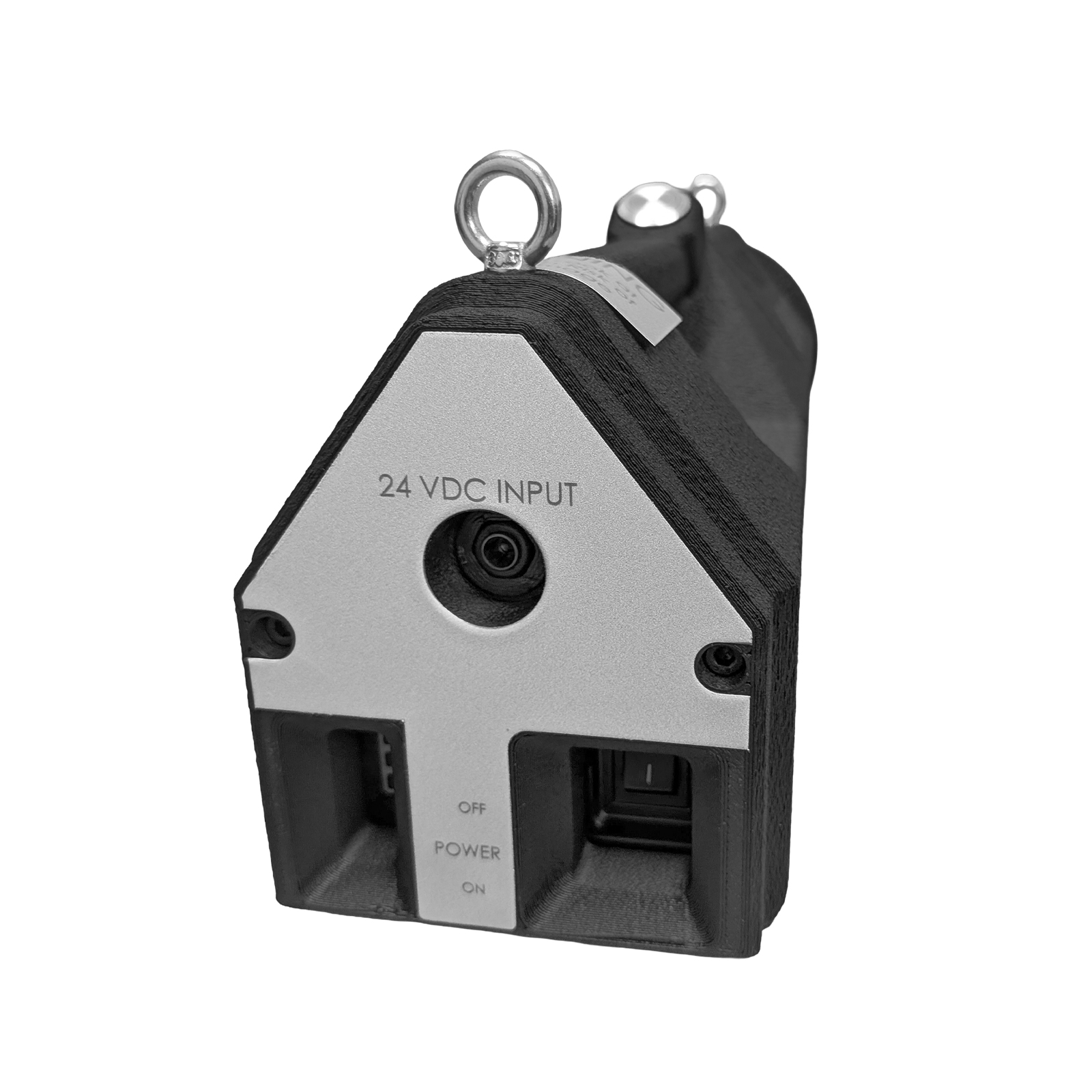

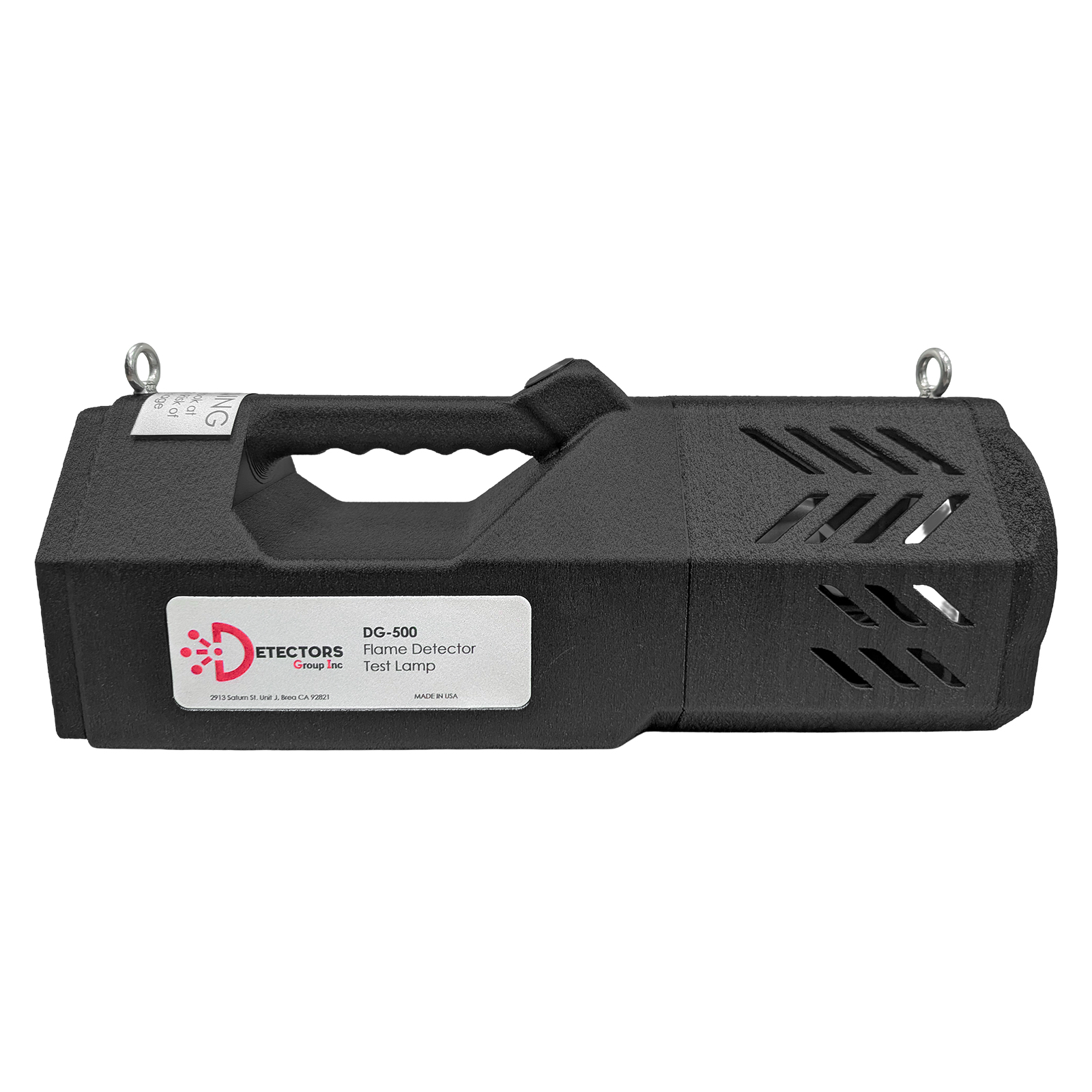

The Detectors Group Inc. Model DG-500 3IR+UV Test Lamps are designed and optimized to simulate a fire for the Detectors Incorporated D371 and D381 3IR+UV Flame Detectors. The DG-500 model emits UV radiation in the Ultraviolet spectrum and Infrared radiation at the 4.3-micron band of the IR spectrum.
The tester simulates a fire signature by modulating the light source to achieve a specific radiant energy.
The DG-500 Test Lamp is optimal for repeated use for periodic verification of the D371, D381, and D171 Flame Detectors.
| Long Battery Life | Operates using a rechargeable lithium ion battery (90 Watt hours) |
| Durable Enclosure | Custom PPA-CF enclosure for stronger impact & chemical resistance |

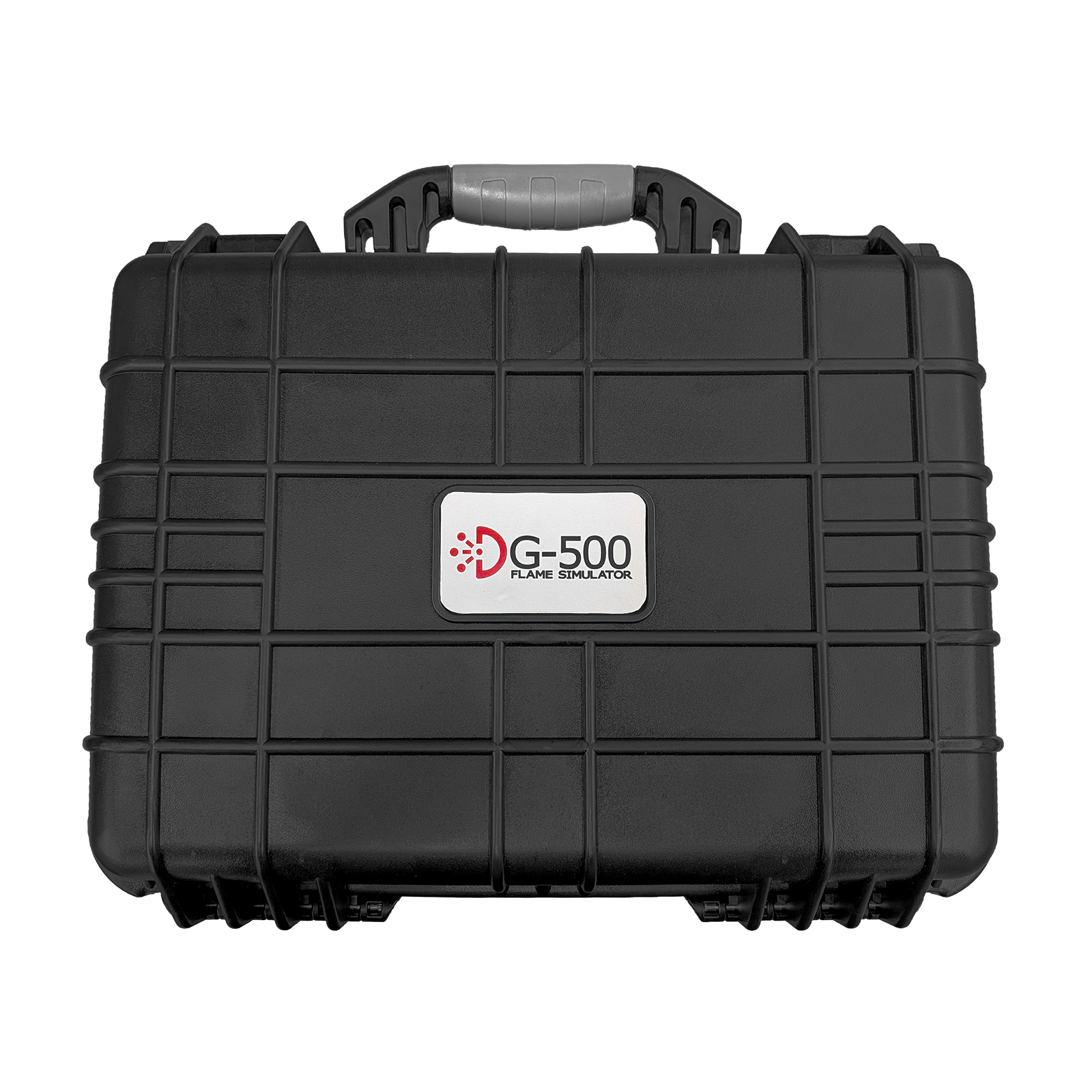

| Ease of Portability | Comes in a plastic carrying case, and includes a shoulder strap and handle for easy portability. |
Power Consumption (Wireless)90 Watt hours
| Electrical | |
|---|---|
| Operating Voltage (Wired) | 24 V (100 W) |
| Mechanical | |
|---|---|
| Enclosure | Custom PPA-CF enclosure |
| Weight | 3.5 lb (1.59 kg) |
| Buttons | Momentary press button ON switch |
| Flame Simulator | |
|---|---|
| Type | Halogen lamp |
| Operation | Custom collimator for focus energy |
| Filter | 4.3 micron filter |
