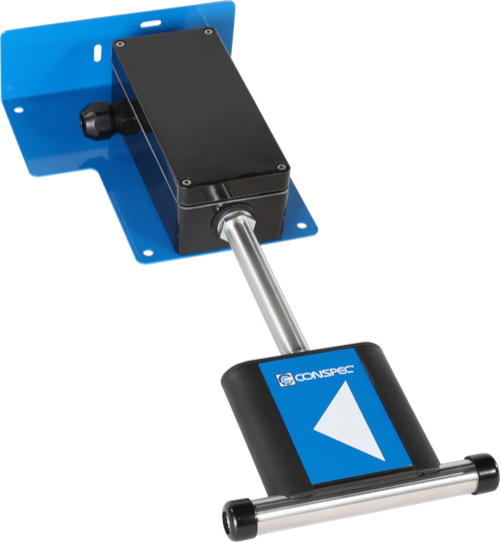

Optio™ AVM

AIR VELOCITY MONITORING FOR RUGGED ENVIRONMENTS

Conspec’s Optio AVM (Air Velocity Monitor) is engineered to succeed where other devices fail, providing accuracy and responsiveness while withstanding even the harshest operational conditions.

We use modified pilot tubes with differential pressure technology to provide stable, reliable readings in the presence of moving vehicles that often disrupt air velocity readings. Designed for ease-of-use, the Optio AVM user interface simplifies the installation, calibration, and maintenance of your device.

The innovative design of the Optio AVM combines gas and atmospheric monitoring, I/O support and a wide array of power and communications options to create an all-in-one solution which greatly reduces upfront costs by eliminating the need for multiple devices.

PRODUCT FEATURES
  • Accurate Differential Pressure Technology – Modified pilot tubes deliver stable, responsive air velocity readings, even in areas affected by moving vehicles.
  • Built for Harsh Environments – Rugged construction ensures reliable performance where other airflow devices struggle.
  • All-in-One Monitoring – Combines air velocity, gas sensing capability, flexible I/O, and multiple power and communication options in a single device.
  • Flexible System Integration – Easily integrates with additional sensors and configurable I/O to expand system capability.
  • Advanced Alarm Control – Customizable alarm logic with native horn and strobe support for immediate, unmistakable alerts.
  • Easy Setup & Software Configuration – Quickly configure and customize using Conspec’s OASIS software.
  • Cost-Effective Solution – Reduces equipment count and installation costs without sacrificing performance.

Sensor Configurations

Differential pressure sensors in a modified pilot tube. Operating ranges:

  • +1000 FPM = +5.0 m/s,
  • +1500 FPM = +7.5 m/s
  • +2200 FPM = +11 m/s,
  • +3600 FPM = +18 m/s
  • +5000 FPM = +25 m/s


Alarms

Supports 4 custom alarm levels with hysteresis and hold-to-alarm timing, fail-high/ low alarms, and relay output logic (AND/OR) based on single or multiple sensor inputs.

Electrical (Intrinsically Safe)

  • MSHA: 6-15 VDC
  • IECEx/ATEX: 6-18 VDC
  • Battery Power for wireless operation


Electrical (Non-Intrinsically Safe)

  • 6-30 VDC
  • 100 – 240 VAC 50/60 Hz
  • DC Battery Pack for wireless operation


Communication (Intrinsically Safe)

  • MSHA: Conspec Trunk, RS-485, Conspec Wireless 900MHz (pending)
  • IECEx/ATEX: Conspec Trunk, Conspec Wireless 900 MHz /800 MHz Band (pending)


Communication (Non-Intrinsically Safe)

  • Conspec Trunk, RS-485, RS-232, Ethernet, POE, Conspec Wireless 900 MHz/800 MHz (pending) Band, Wi-Fi, LTE, Leaky Feeder (VHF, UHF).
  • Com Distance up to 3.75 mi (6 km).


Communication Protocols

  • MODBUS RTU, MODBUS TCP, Conspec Legacy ACCESSOR


Mechanical

  • 16.9 in × 7.1 in × 2.7 in
    (42.9 cm × 18.0 cm × 6.9 cm)
  • 3 lb (1.3 kg)


Electrical

  • At 10% Backlight: 4 mA, 15 V


Environmental

  • Operating Temperature: -4°F to -104°F (20°C to +40°C)
  • Operating Humidity: 10-95% RH noncondensing

Warranty

  • One year standard warranty
  • Air Velocity
  • Air Quality Stations
  • DIY Ventilation
  • Coal Mining
  • Hard Rock Mining
  • Tunneling
  • Fan Control and
    Monitoring
  • MSHA: Part 18
  • Commonwealth of Pennsylvania Approval No. BOTE 32-19
  • ETL-US: Class I, Division 1, Group D / Class I, Zone 0, Group IIA {AEx ia IIA Ga)/ Class II, Division 1, Group E-G / Class II, Zone 20, Group E-G (pending)
  • C-ETL: Class I, Division 1, Group D / Class I, Zone 0, Group IIA {Ex ia IIA) //Class II, Division 1, Group E-G / Class II, Zone 20, Group E-G (pending)
  • ATEX: I Ml Ex ia I Ma/ Ex ia IIA Ga/ Ex ia IIIC Da (pending)
  • IECEx: Ex ia I Ma/ Ex ia IIA Ga/ Ex ia IIIC Da (pending)
  • T4 / T135°C & T ambient: -4°F to -104°F (20°C to +40°C)
  • SIL-1 (pending)
