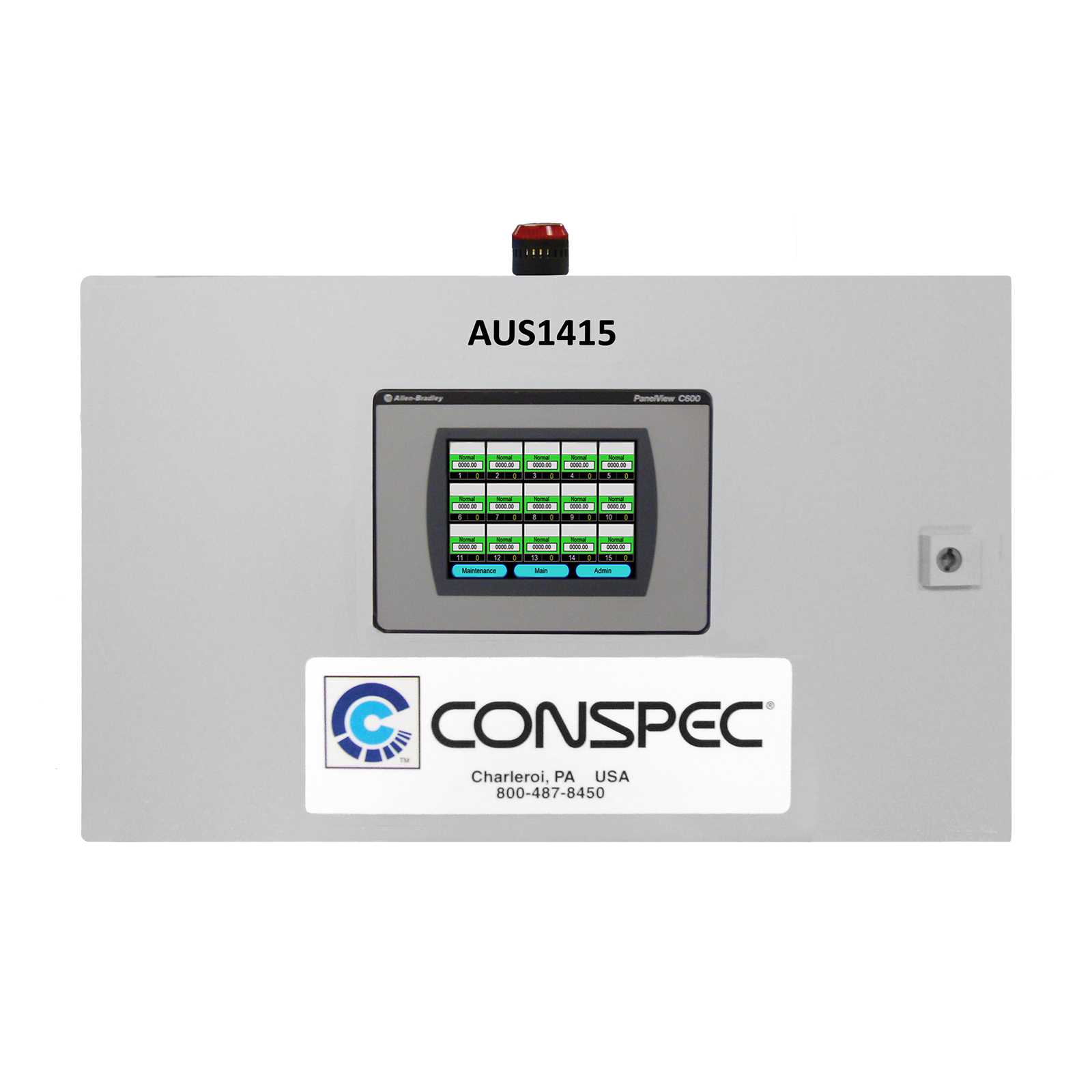

Conspec’s AUS1415 15-channel gas detector controller panel is the perfect solution for alarming or controlling your processes from a single location, communicating with up to fifteen CN Series / CX Series gas detectors. It can serve as an independent controller or be fed into any digital communication system. The convenient 7” touch screen continuously shows real time values of the measured parameters as well as provides navigation through the system’s screens. Control options are nearly endless thanks to the Allen Bradley MicroLogix 1400 processing power.
| Scalable System | Supports up to 15 channels, allowing the AUS1415 system to grow alongside operational needs. |
| LCD Touchscreen | 7 in LCD touchscreen provides intuitive operation and simplifies system configuration. |
| Alarm Capabilities | Supports local and remote alarming to notify personnel of hazardous conditions. |
| Customizable Configuration | Fully configurable to meet a wide range of application requirements. |
| System Integration | Supports industry-standard communication protocols for seamless integration with existing infrastructure. |
| Mechanical | |
|---|---|
| Enclosure | NEMA 4 steel (UL & CSA approved) |
| Dimensions | 24 × 16 × 8 in |
| Weight | Approximately 24 lb |
| Mounting | 4 mounting holes |
| Conduit Entries | Varies with options |
| Environmental | |
|---|---|
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Operating Humidity | 0–99% RH, non-condensing |
| Electrical | |
|---|---|
| Operating Voltage | 120 VAC power supply |
| Cable Requirements | Modbus trunk cable or 18 AWG transmitter cable |
| Relay Contacts | Up to 6 relay-controlled outputs |
| Current Consumption | 150 mA |
| System | |
|---|---|
| Processor | MicroLogix 1400 PLC |
| Security | Password protected |
| Supported Sensor Types | Electrochemical, Catalytic Bead, Infrared, Photo-Ionization (PID), Thermal Conductivity |
| Power Recovery | 100% hands-free after power interruptions |
| Operating Modes | Calibration and Normal |
| Display | 7 in PanelView LCD touchscreen |
| Trend Display | Historical graphs from 15 minutes to 24 hours |
| System Outputs | Sensor Fail, Alarm 1, Alarm 2, and multiple status indicators |
| Automotive Facilities |
| Factories / Warehouses |
| Boiler / Generating Rooms |
| Water Treatment Plants |
| Wastewater Treatment Plants |
| Chemical Processing Plants |
| Bus Terminals & Depots |
| Pulp & Paper Mills |
| Pharmaceutical Labs |
| Telecommunication Stations |
| Semiconductor Facilities |
| Utility Plants |
| Research / Development Labs |
| Enclosure Audible Alarm | Enclosure-mounted audible alarm |
| Ethernet | Ethernet communication capabilities |
| Relay Options | Multiple relay contact options |
| P1643-2 | Remote Alarm Panel |
| Analog Input Module | Optional analog input module |
