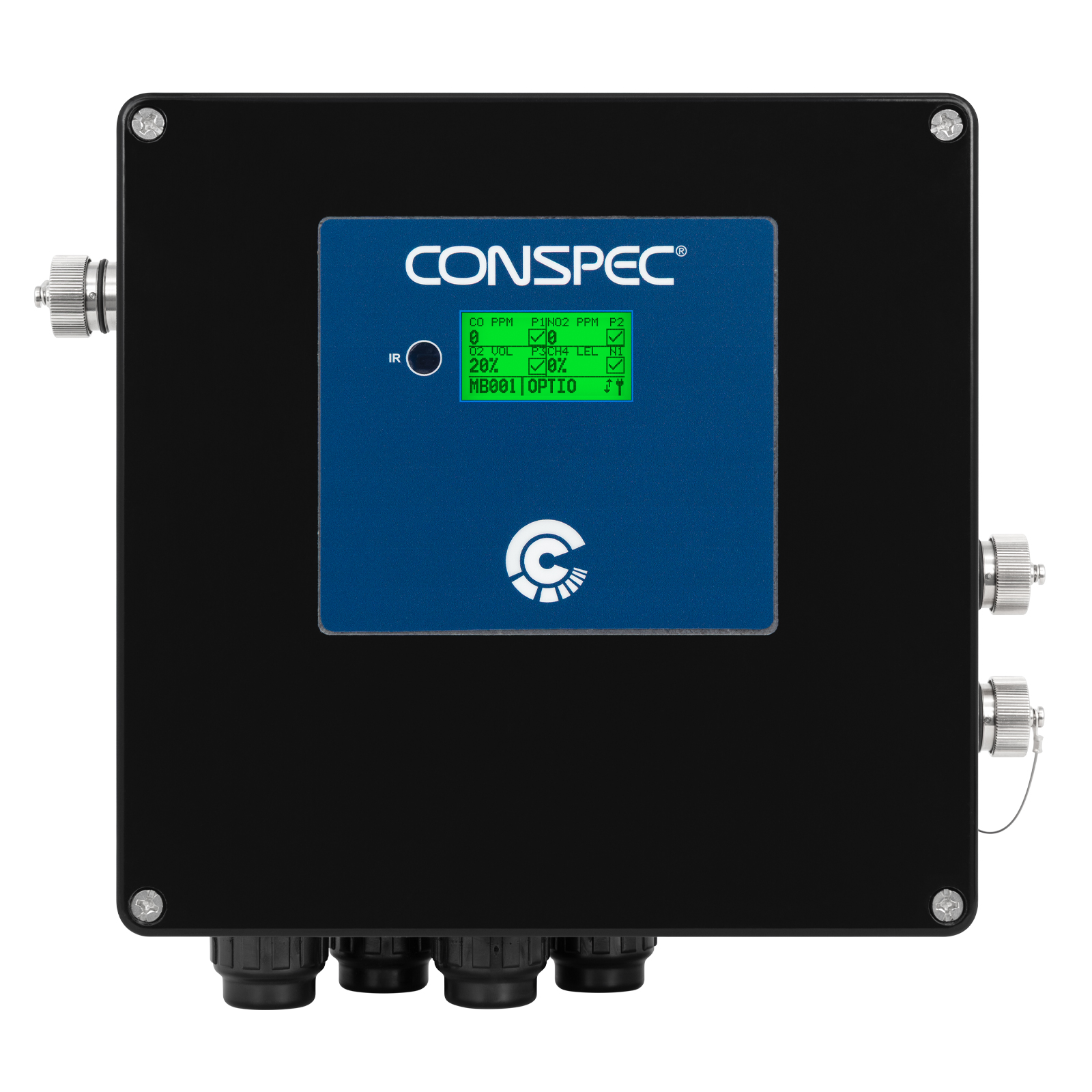

The Optio IS is an Intrinscially Safe multi-gas monitor engineered for operation in classified areas. Once alarm thresholds are reached, the Optio IS can engage local alarms to alert personnel to changing conditions, while seamlessly communicating real-time status to front-end SCADA software such as Conspec’s Senturion S950 command center (sold separately).
Designed for flexibility, the Optio IS supports up to six gas sensors (including CO, Methane, O2, and NO2,) as well as atmospheric sensors for environmental monitoring, providing broad detection coverage from a single device. This versatility helps reduce installation costs while maximizing operational efficiency.
With ETL-US, C-ETL, IECEx and ATEX intrinsic safety approvals, the Optio IS is a global solution for coal mining, hard rock mining, and oil and gas well pad operations.

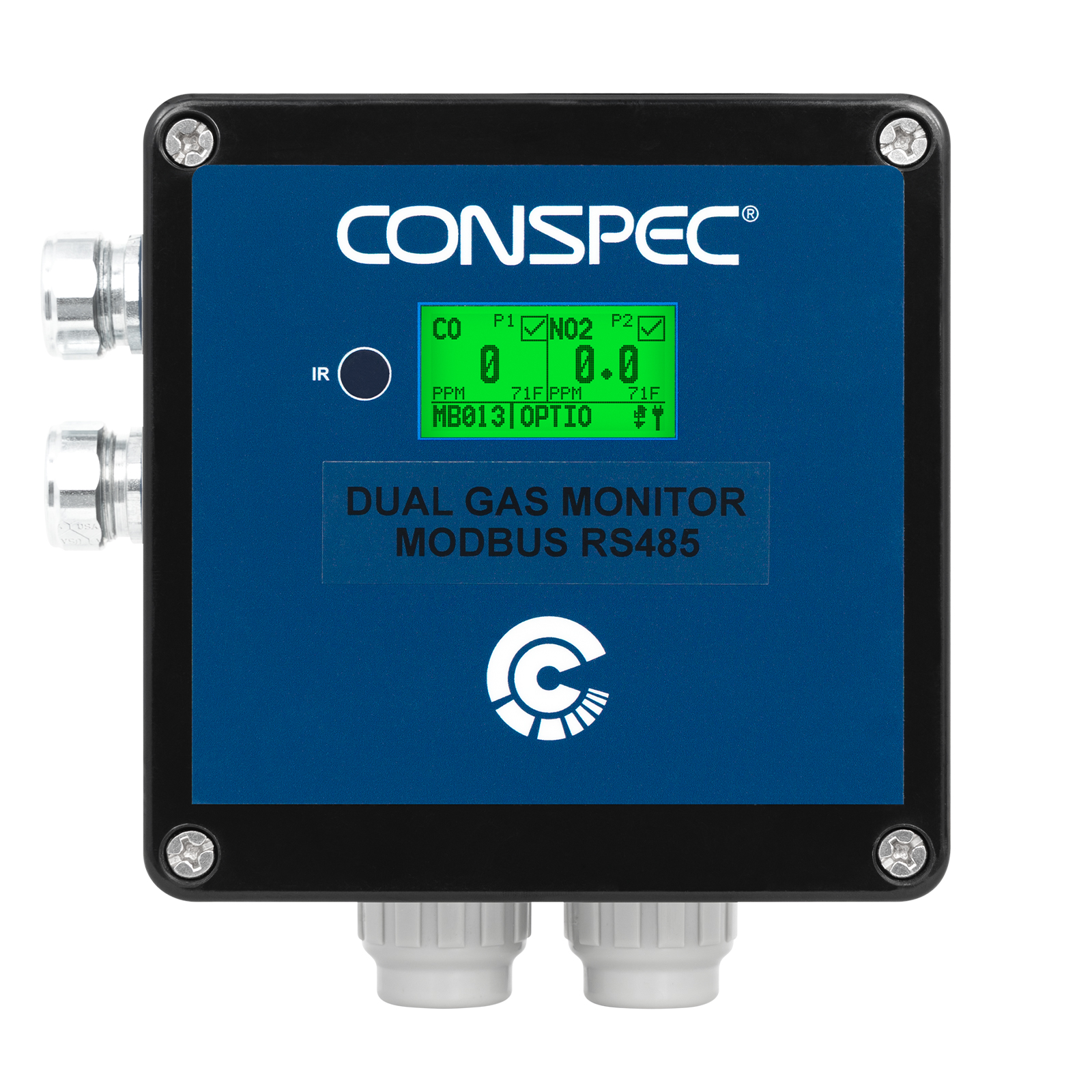

Available in multiple configurations: Multi-Gas (6, 4), Dual-Gas (2), and Wireless. A Diesel Discriminator configuration is available for environments with diesel equipment.
| Intrinsically Safe Design | Intrinsically Safe approvals allow for safe operation and maintenance in hazardous environments without requiring downtime. |
| Comprehensive Features | Combines gas monitoring, atmospheric monitoring, and integrated I/O to reduce the need for multiple standalone safety devices. |
| Easy System Integration | Supports industry-standard communications including Modbus RTU, Conspec Trunk, RS232, RS485, PoE, VHF, UHF, or 915 MHz. |
| Onboard Relays | Built-in relays allow direct control of external alarms, ventilation equipment, and other safety devices. |
| Multiple Configurations | Available in dual- or multi-gas configurations, wireless, or with diesel discrimination to scale with a wide range of operational needs. |
| Extensive Sensor Support | Supports a wide array of electrochemical and NDIR gas sensors, atmospheric and weather sensors, and Optio AVM for air velocity monitoring. |
| Sensor Configurations | |
|---|---|
| Up to 3 Electrochemical Sensors | CO, O2, NO2, NO, H2S, and more * |
| Up to 3 NDIR Sensors | CH4, CO2, and more * |
| Mini-Weather Station (MWS) | Dry Bulb Temperature, Wet Bulb Temperature, Relative Humidity, Barometric Pressure |
| Air Velocity Monitor (AVM) | -12 m/s to +12 m/s (-2,400 ft/min to +2,400 ft/min) |
| PnP Multiplexer Option | Provides option to replace NDIR sensors with PnP sensors |
| * Additional gas configurations and ranges available. Contact sales for a complete list of part numbers. | |
| Electrical | |
|---|---|
| Operating Voltage | 6-18 VDC |
| Power Consumption (Wired) | Minimum 4 mA @ 15 VDC; Maximum 31 mA @ 15 VDC |
| Power Consumption (Wireless) | Up to one year battery life |
| Mechanical | |
|---|---|
| Enclosure | Polycarbonite |
| MGM2 / MGM-GW | 6.3 × 6.3 × 3.6 in (160 × 160 × 91 mm); 6 lb (2.72 kg) |
| MGM4 | 10.2 × 6.3 × 3.6 in (260 × 160 × 91 mm); 10 lb (4.54 kg) |
| MGM6 | 10.0 in × 9.8 in × 4.8 in (255 × 250 × 121 mm); 12 lb (5.44 kg) |
| MGMX-W | 10.0 × 8.0 × 4.0 in (254 × 203 × 102 mm); 8 lb (3.63 kg) |
| Environmental | |
|---|---|
| Operating Temperature | -4°F to +104°F (-20°C to +40°C) ambient |
| Operating Humidity | 0–95% RH non-condensing |
| Recovery | Condensation recovery algorithm for NDIR CH4 sensor |
| Communication | |
|---|---|
| Protocols | Modbus RTU, Conspec Trunk |
| Interfaces | RS232, RS485, VHF, UHF, and 915 MHz wireless |
| I/O Capabilities | |
|---|---|
| Multi-Function Ports | 6 × DI/AI (0–5 V) |
| Analog Inputs | 2 × 0–6 VDC |
| Alarms | |
|---|---|
| Trouble Alarms | Sensor failure (high / low), communication error, or internal fault |
| Alarm Set Point | 4 levels per sensor with hysteresis and hold-to-alarm timing |
| Strobe / Horn | Local horn & strobe support configured via relay settings |
| Coal Mining |
| Mining and Tunneling |
| Ventilation Management |
| Safety Systems |
| Fan Control Systems |
| Oil and Gas Facilities |
Conspec’s Optio IS is also offered in a Diesel Discriminator format.
The Optio IS Diesel Discriminator is a multi-gas monitor specifically designed to filter out nuisance Carbon Monoxide Sensor alarms that may occur in a mining environment due to passing diesel equipment, particularly from the cross-sensitivity of NO and NO2 that is normally picked up by a typical Carbon Monoxide Sensor. The result provides real-time Carbon Monoxide, Nitric Oxide and Nitrogen Dioxide readings as measured by the sensors, and a Corrected Carbon Monoxide Reading to provide the actual Carbon Monoxide measurement at the point of monitoring.
Due to the improvements in processor speed, this corrected Carbon Monoxide reading is simultaneously compared with its own previous states and averaged ambient sensor readings to serve as a proof-of-work verification, to both ensure its current accuracy and to further improve the accuracy of the algorithm over time, thus resulting in even less false Carbon Monoxide alarms than in previous generations of diesel discriminators.
Up to three additional sensors can be installed at the desired location, whether for monitoring of other gases or atmospheric conditions, such as the Optio AVM, wet and dry bulb temperature, humidity and barometric pressure, and more.
| ETL-US | Class I, Division 1, Group D / Class I, Zone 0, Group IIA (AEx ia IIA Ga) / Class II, Division 1, Group E-G / Class II, Zone 20, Group E-G |
| C-ETL | Class I, Division 1, Group D / Class I, Zone 0, Group IIA (Ex ia IIA) / Class II, Division 1, Group E-G / Class II, Zone 20, Group E-G |
| ATEX | I M1 Ex ia I Ma / Ex ia IIA Ga / Ex ia IIIC Da |
| IECEx | Ex ia I Ma / Ex ia IIA Ga / Ex ia IIIC Da |
| Temperature Rating | T4 / T135°C & Ambient: -20°C to +40°C |
| SIL Rating | SIL-1 |
| T1481-M | Low power Horn / Strobe |
| 911118-CPM | IR Remote |
| P1879-XX-YYYY | P1879 Series Calibration Kits |
| Optio AVM | Air Velocity Monitor / Sensor |
| Mini Weather Station | Dry bulb temperature, wet bulb temperature, relative humidity, barometric pressure |
| ROS-S13333-B | Red Outstation |
| REX-1630000 | Red Extender |
| 911150 | Blue Barrier |
| P2810-C | Blue Barrier Interface |
