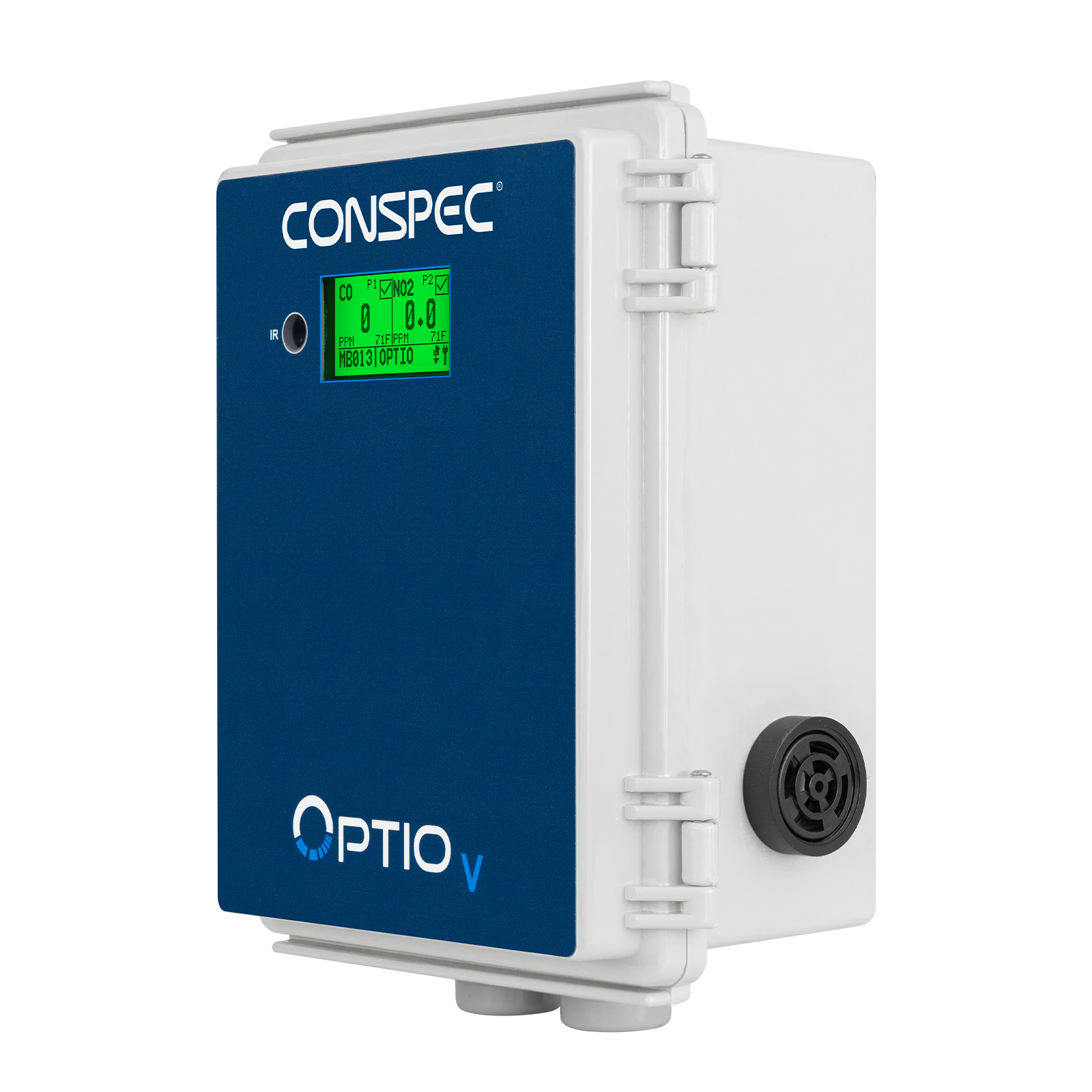

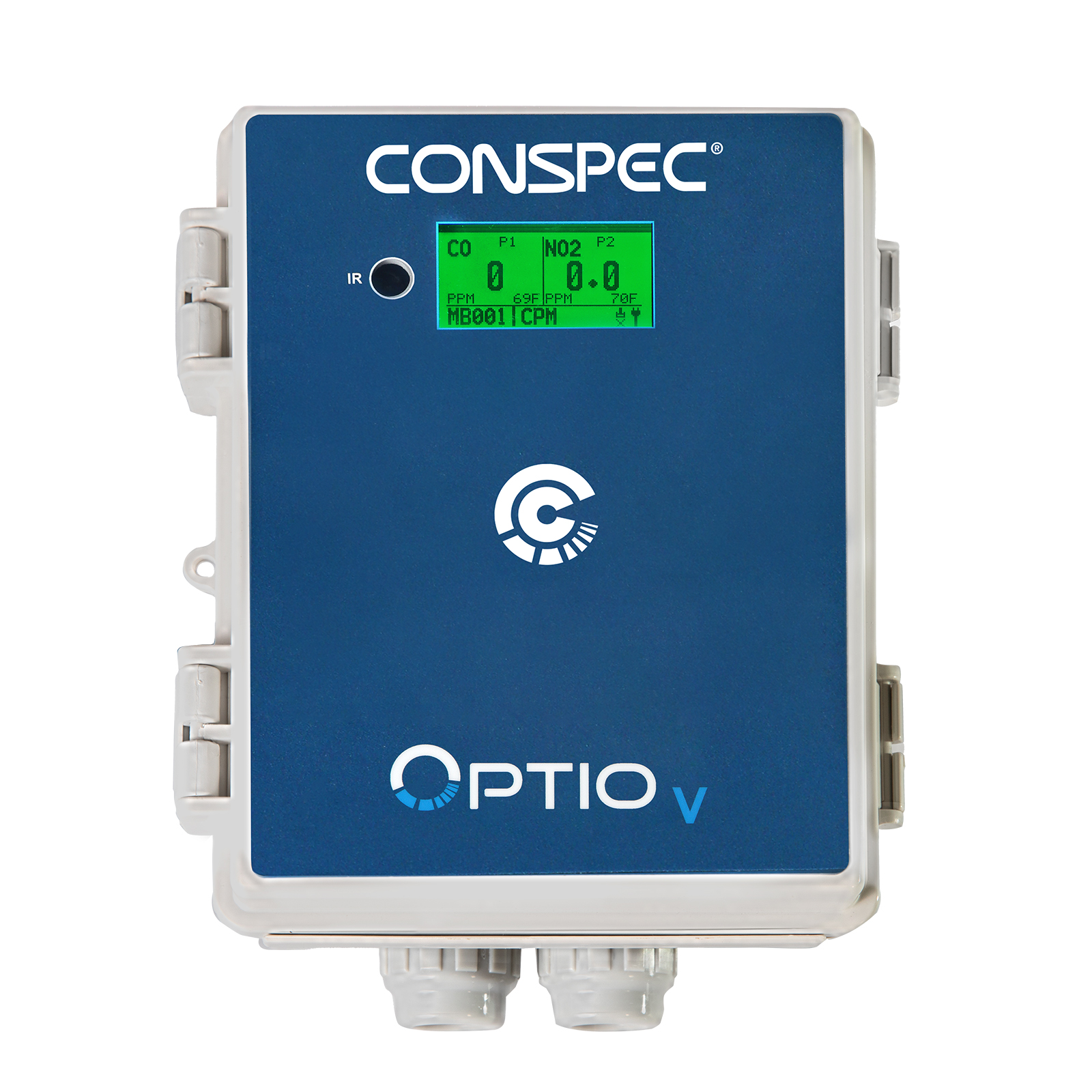

The Optio V is a multi-gas monitor designed for low-level detection of Carbon Monoxide (CO) and Nitrogen Dioxide (NO2) vehicle emissions in enclosed spaces. Once alarm thresholds are reached, the monitor can engage mitigation and notification systems; including turning on ventilation, warning signals, and communicating with a facility’s BAS / BMS.

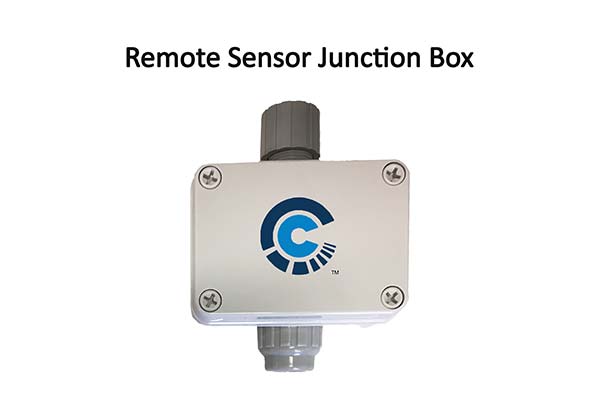

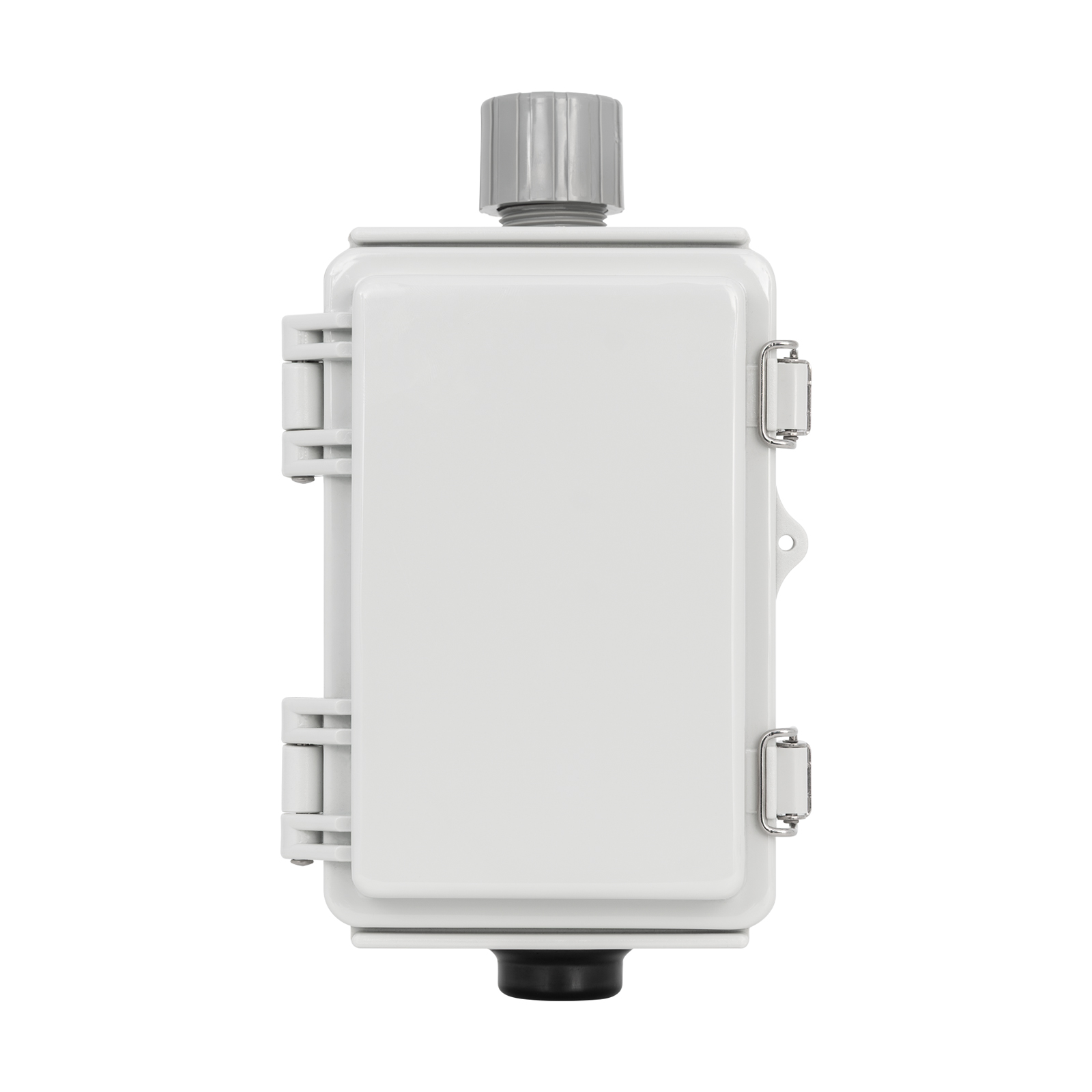

The Optio V’s innovative design allows it to support up to six sensors. These sensors can be deployed internally or remotely (up to 100 ft / 30 m), allowing the device to monitor for toxic gases over a wider area.
The Optio V seamlessly integrates into larger safety systems, forming a scalable solution engineered to the unique safety and operational needs of any facility.
| On-Demand Ventilation | Operating ventilation only when it is needed reduces equipment wear while also decreasing energy consumption by 85%. |
| Long Sensor Life | Designed for extended operational longevity, reducing replacement frequency and lowering maintenance costs. |
| Self-Diagnostic Function | Continuously monitors internal health to ensure reliable system performance and early fault detection. |
| Automatic Reset | Recovers seamlessly after power loss, minimizing manual intervention. |
| Onboard Relays | Provides built-in relays for direct control of external devices, alarms, or ventilation functions. |

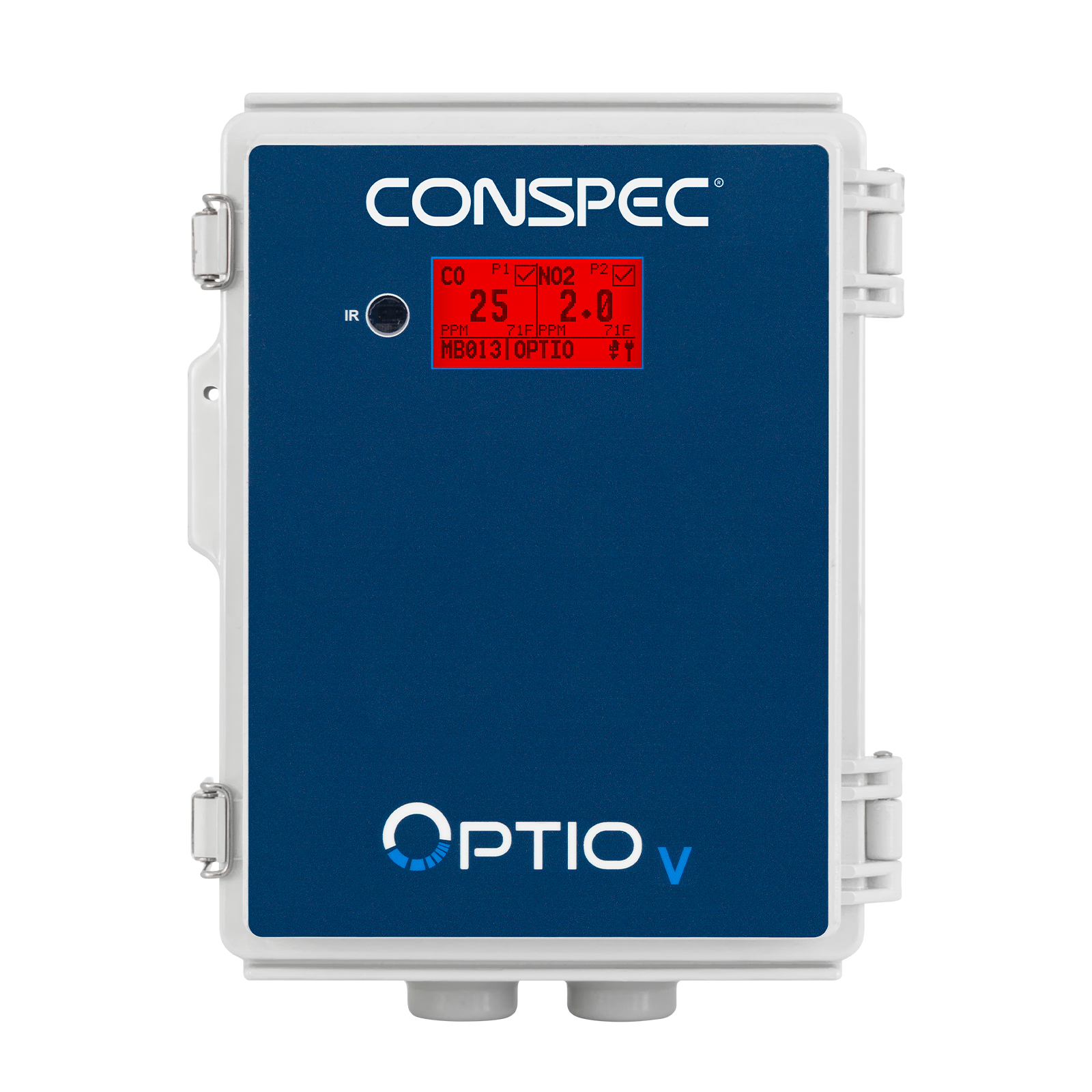

| Onboard Alarm | Delivers a loud, clear audible warning to alert personnel to hazardous conditions. |

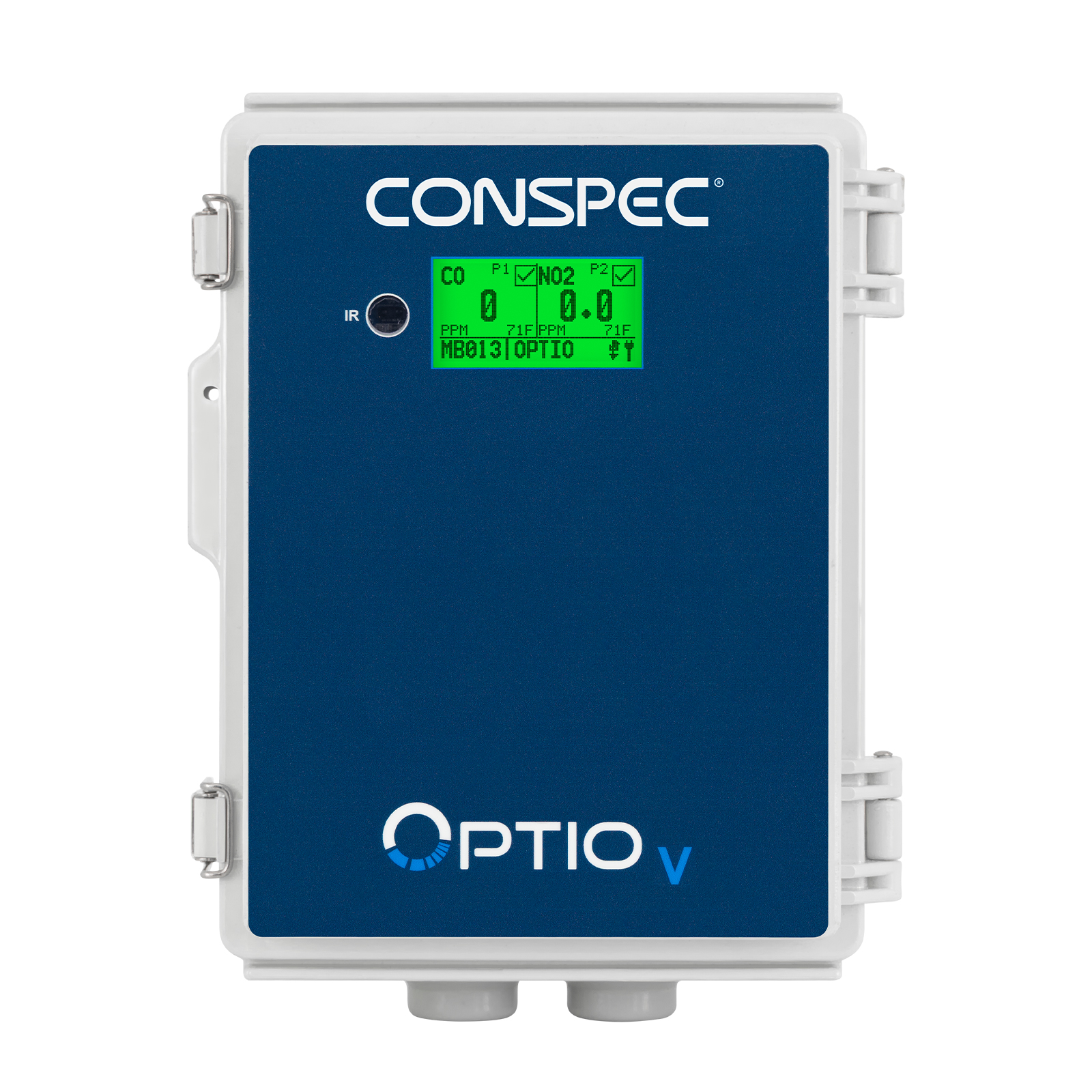

| Bright LCD Display | High-visibility screen ensures clear viewing of gas readings and status information in various lighting conditions. |
| Flexible Sensor Configuration | Supports a combination of 6 internal or remote sensors (up to 2 internal sensors). |
| BAS and Primus V Integration | Multiple Optio V detectors can connect to a Primus V Controller for centralized monitoring, building automation system (BAS) integration, and fan, louvre, or exhaust control. |
| CO | NO2 | |
|---|---|---|
| Sensor Technology | Electrochemical (EC) | Electrochemical (EC) |
| Range | 0–500 ppm | 0–20 ppm |
| Life Expectancy | 7 years | 2 years |
| Response Time | T90 < 30 seconds | T90 < 25 seconds |
| Electrical | |
|---|---|
| Operating Voltage | 12-24 VDC, or PoE |
| Power Consumption | Max 50 mA @ 24 VDC |
| Mechanical | |
|---|---|
| Dimensions | 8.2 × 6.2 × 3.9 in (208 × 157 × 99 mm) |
| Weight | 3 lb (1.4 kg) |
| Environmental | |
|---|---|
| Operating Temperature | -4°F to +122°F (-20°C to +50°C) |
| Operating Humidity | 15-90% RH non-condensing |
| Communication Interfaces | |
|---|---|
| Interface | Modbus RTU (RS485) |
| I/O Capabilities | |
|---|---|
| Relay Outputs | 6 × SPDT 2 A @ 30 VDC |
| Multi-Function Ports | 6 × DI/AI (0–5 V) |
| Analog Outputs | 2 × 4–20 mA |
| Alarms | |
|---|---|
| Onboard Alarm | 80 dB @ 3 ft (0.9 m) |
| Trouble Alarms | Sensor failure (high / low), communication error, or internal fault |
| Relay Logic | AND/OR logic based on single or multiple sensor inputs |
| Custom Alarms | 4 alarm levels per sensor with hysteresis and hold-to-alarm timing |
| Enclosed Parking Garages |
| Vehicle Maintenance Facilities |
| Factories / Warehouses |
| Bus Terminals & Depots |
| Tunnels |
| Car Dealerships |
| Fire / Police Stations |
| Service Bays |
| UL | Std. No. 61010-1 3rd Edition + AM1:2018 |
| CAN/CSA | No. 61010-1-12 Third Edition +AM1:2018 City of LA Approved |
| City of LA Approved | Â |
| Accessories | |
|---|---|
| 900744-ASBY-24 | 120 V Power Supply |
| P1879-CPR-250/10 | Calibration Kits |
| PnP0352-32 | Replacement Sensor CO |
| PnP1021-33 | Replacement Sensor NO2 |

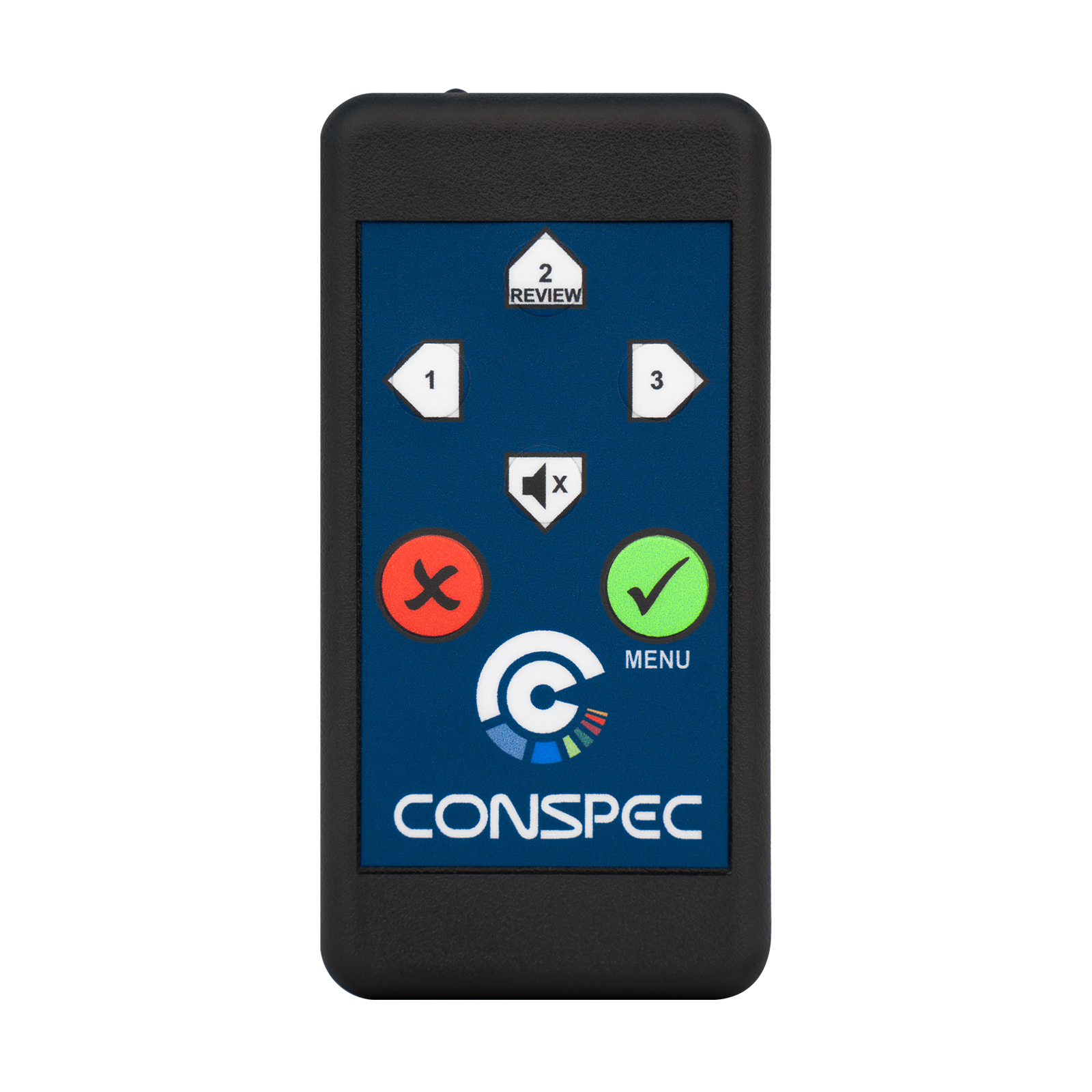

| Industrial IR Remote | IR Remote |
