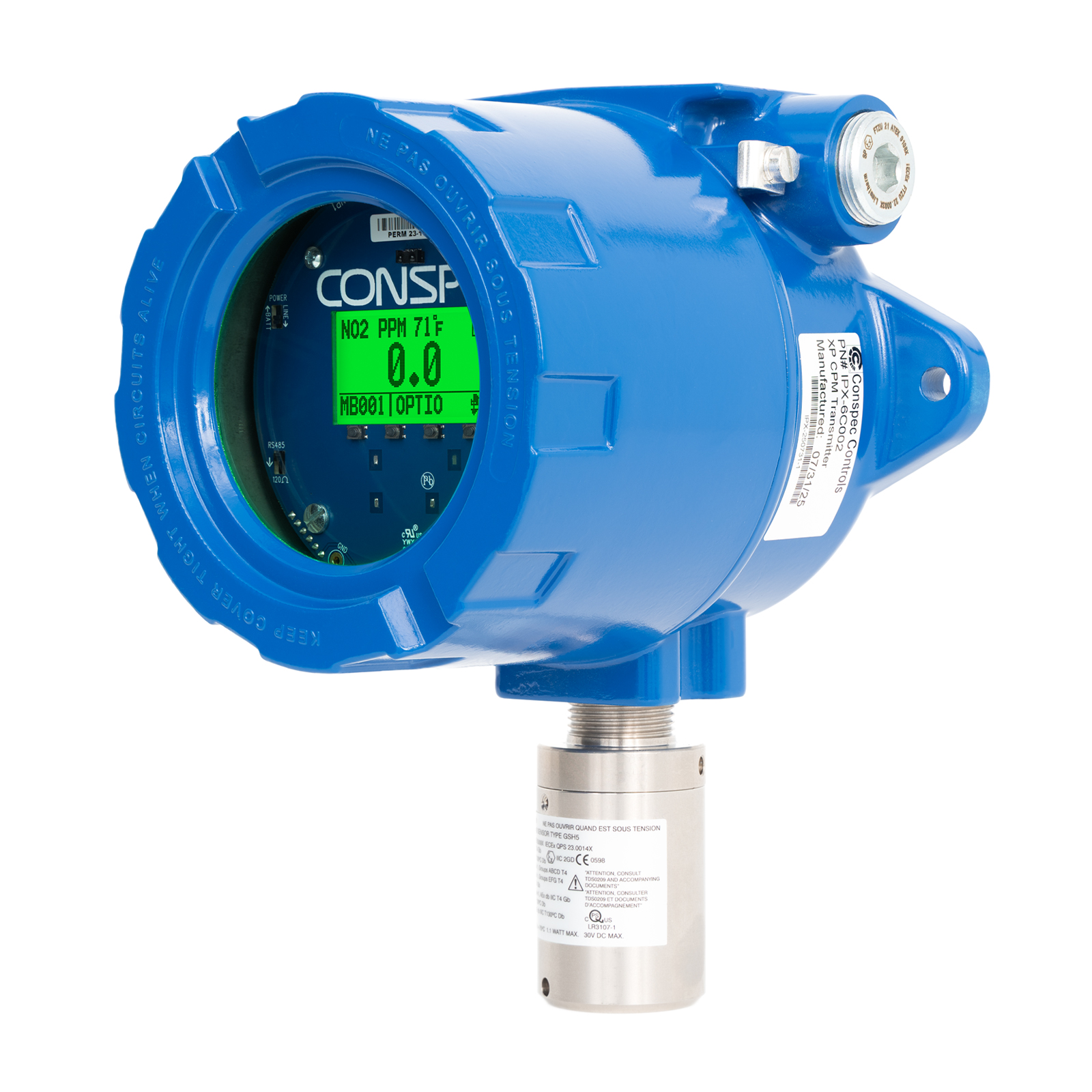

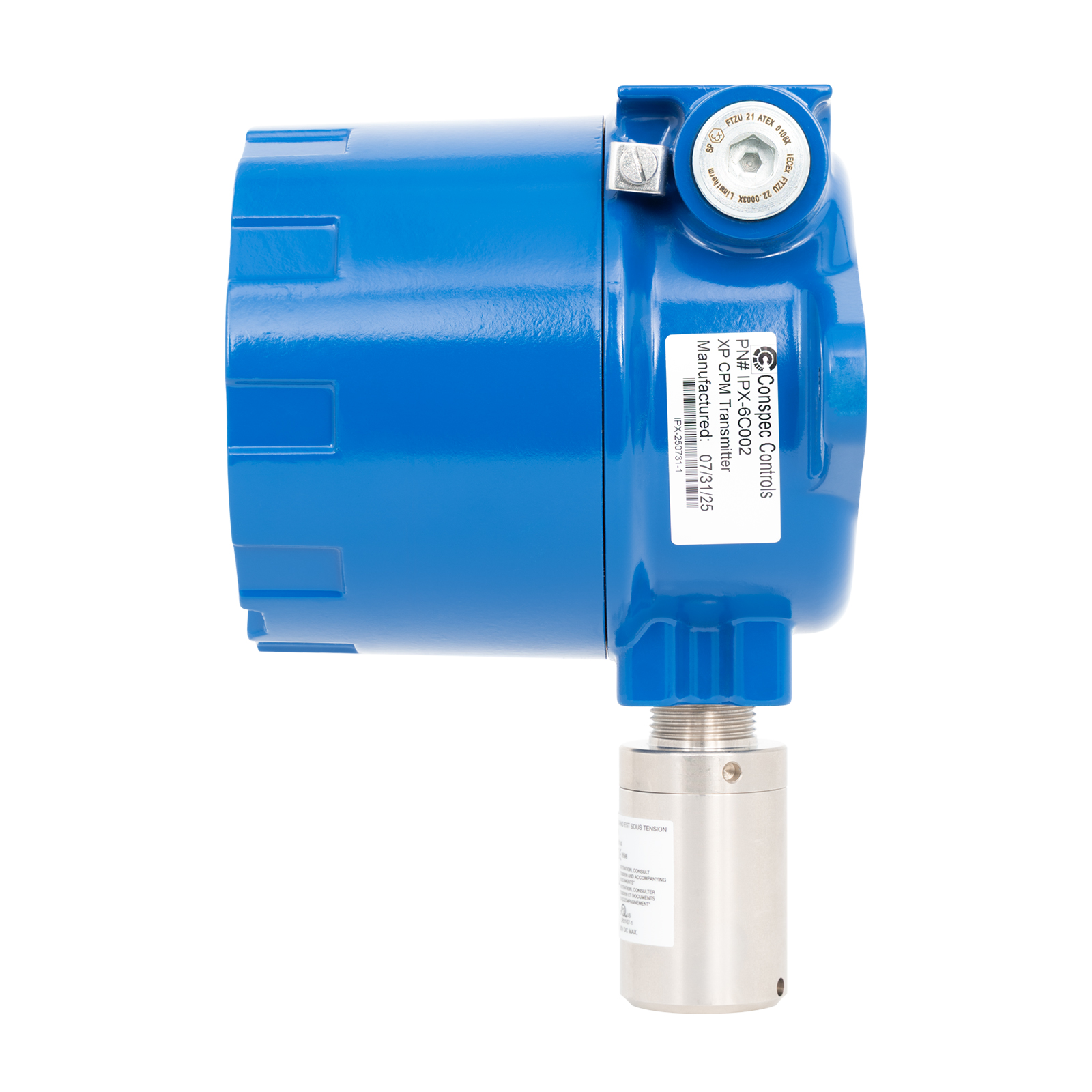

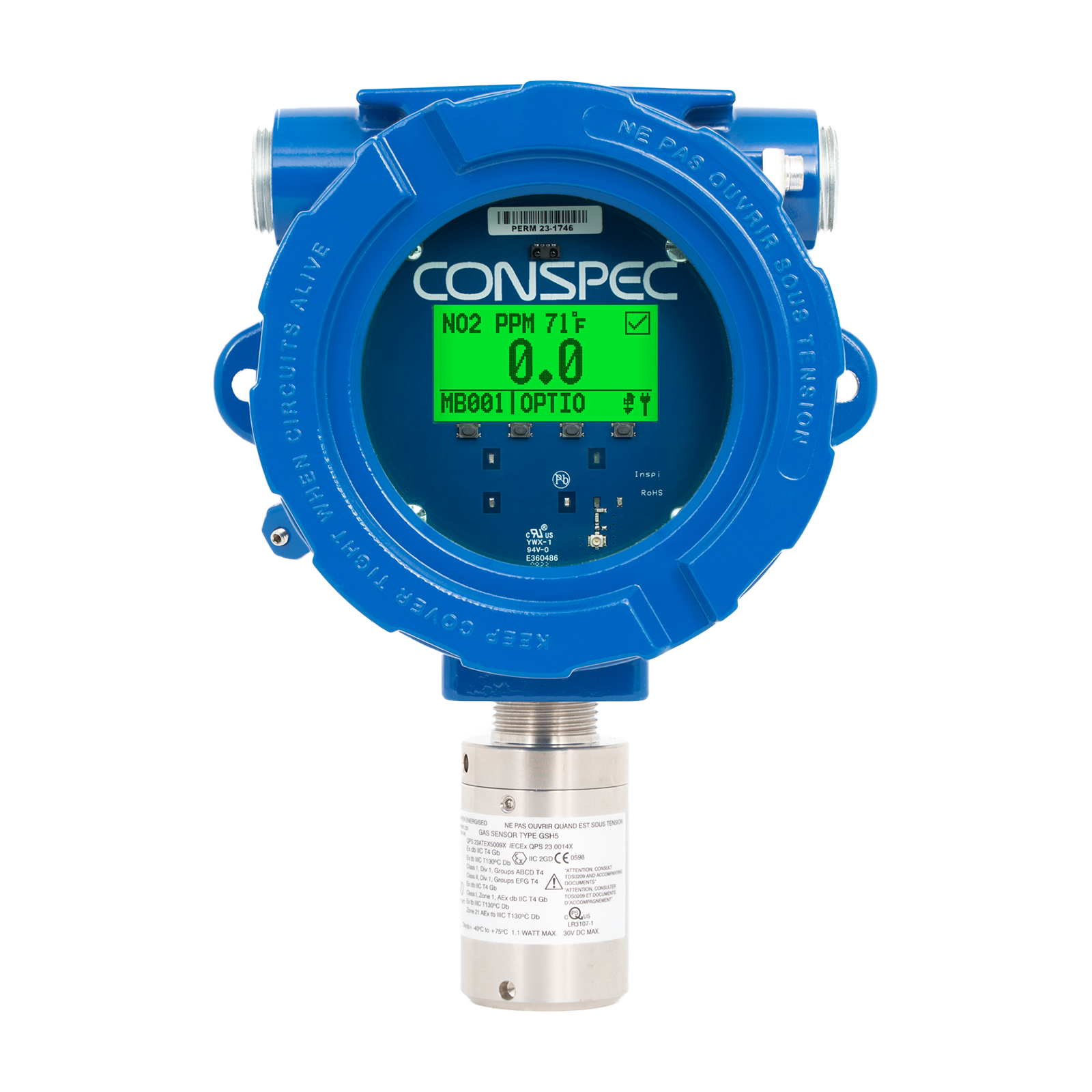

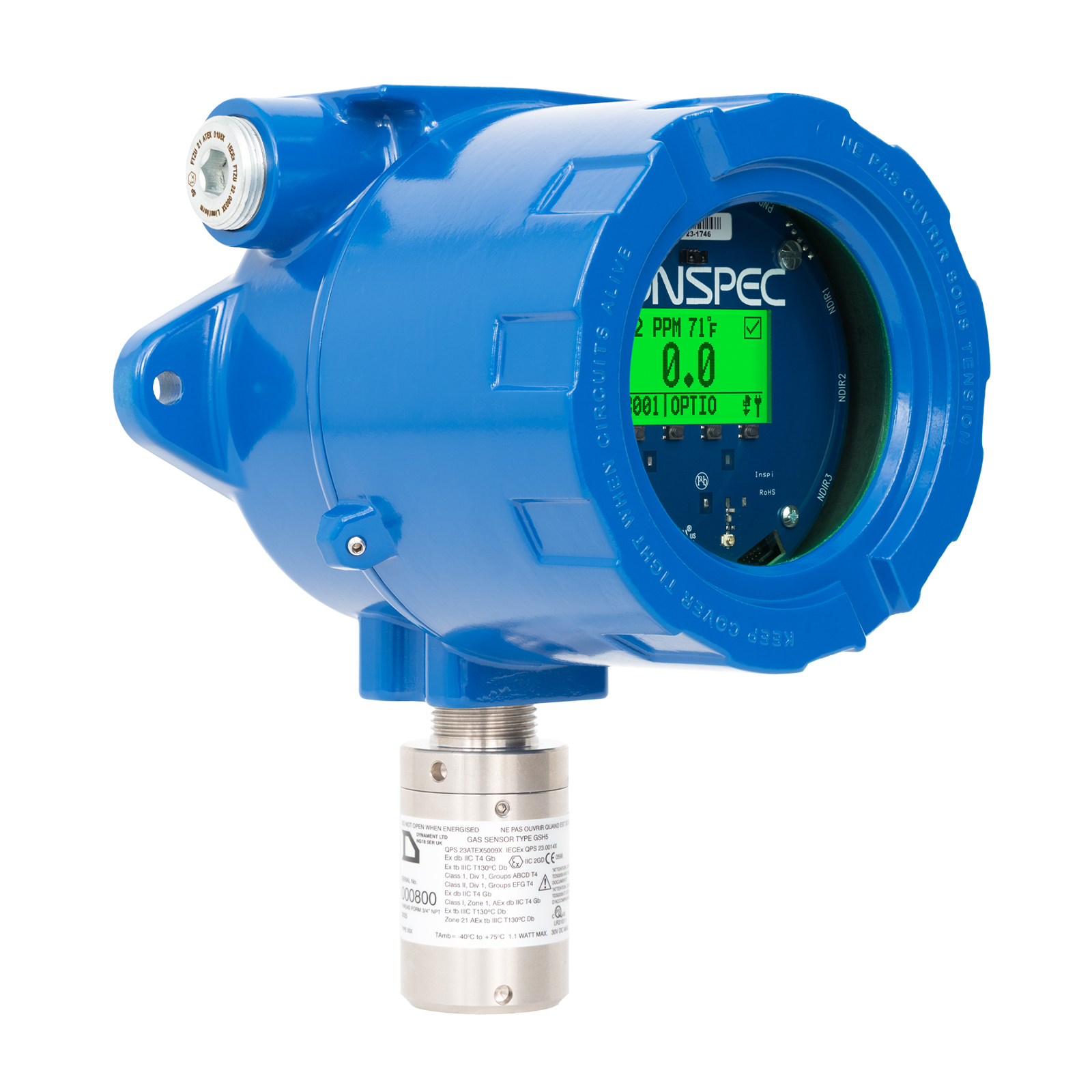

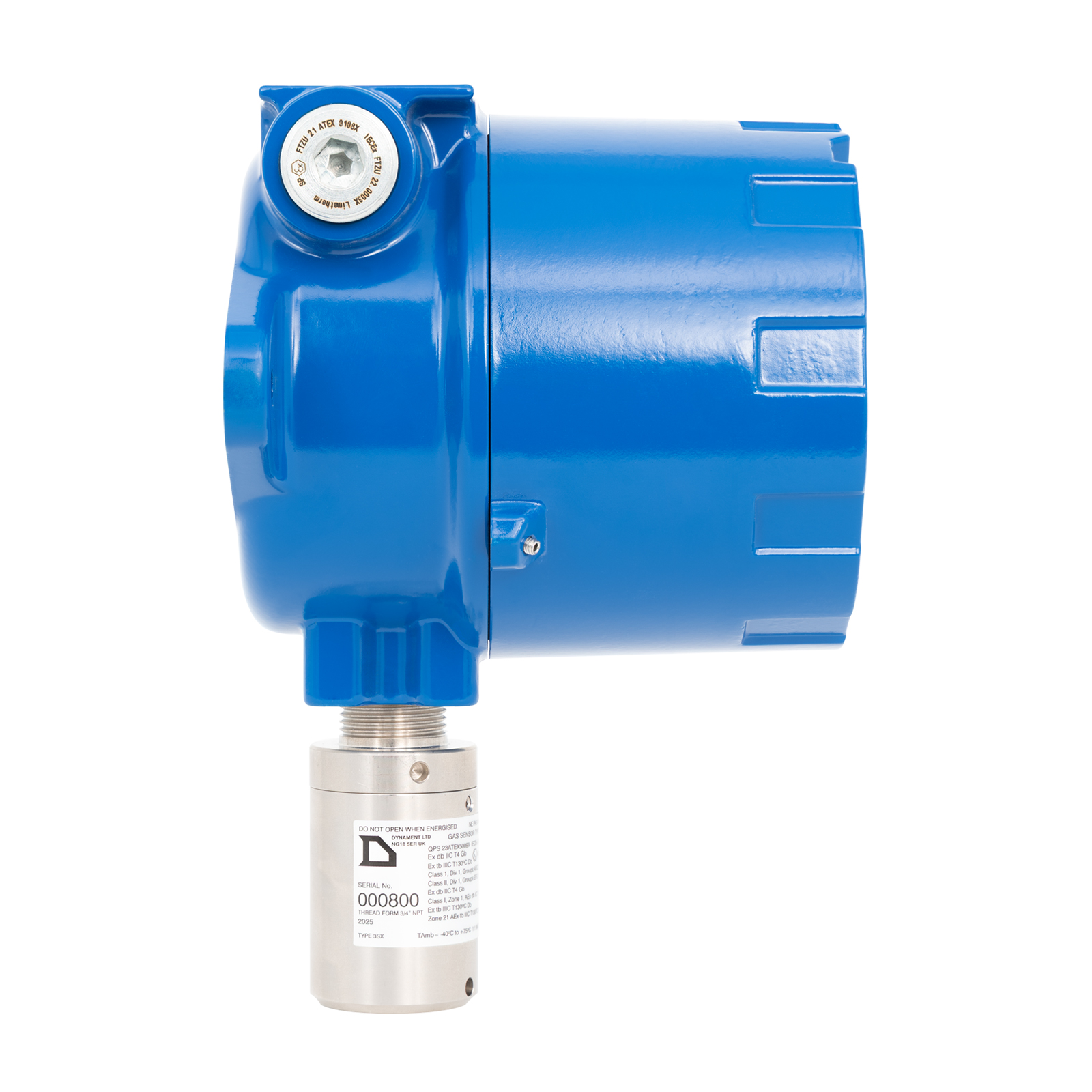

The Optio XP is a fixed explosion-proof multi-gas monitor designed for use in hazardous locations. Engineered to be rugged, the monitor is capable of withstanding impact, vibration, and dramatic environmental changes. When combined with Conspec’s HPIR sensor, The Optio XP is capable of maintaining the highest level of performance in extreme cold temperatures down to -40°F (-40°C).

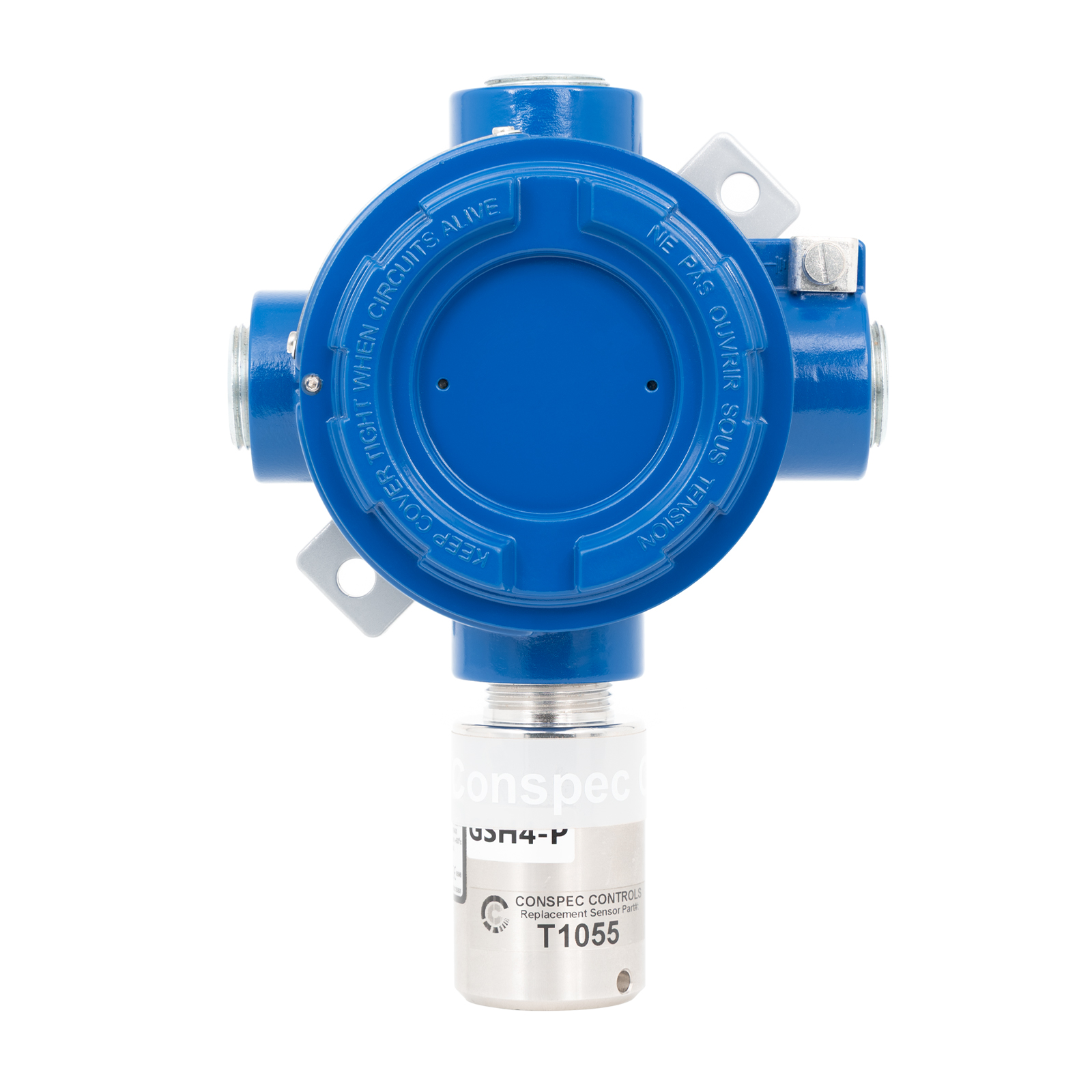

The Optio XP’s innovative design allows it to support up to six sensors simultaneously, enabling a single device to monitor for toxic and combustible gases over a wider area. When additional reach is required, optional remote sensors can be wired up to 100 ft (30 m), allowing the detection system to achieve an even larger coverage area when using multiple sensors.

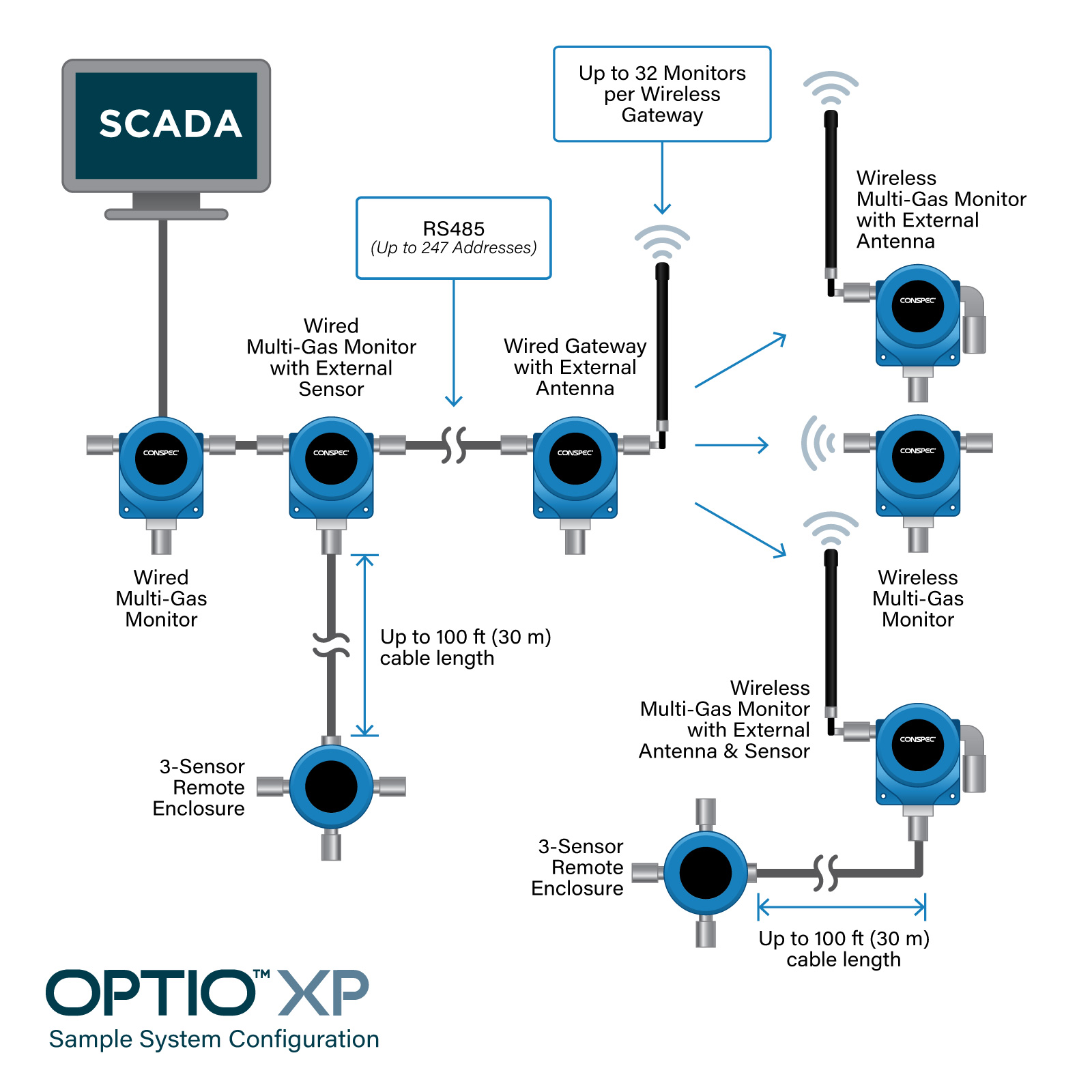

For installations where cabling is not practical, the Optio XP supports a wireless gas detection configuration using the Optio XP Gateway (required for wireless operation), which easily integrates into control systems through Modbus RTU over RS-485 for communication and automation. This enables reliable wireless communication for gas monitoring in remote or hard-to-wire hazardous locations.
The Optio XP seamlessly integrates into larger safety systems, forming a scalable solution engineered to the unique safety and operational needs of any facility. Compact, dependable, and easy to maintain, the Optio XP provides consistent protection in the most demanding industrial environments.
| Explosion-Proof Enclosure | The Optio XP will not provide an ignition source for combustible gases / dust in hazardous locations. |
| Multi-Gas Detection | Support for up to 6 sensors allows one device to protect a wider area and eliminate the need for additional gas detectors. |
| Simple Sensor Replacement | Plug-and-play sensor design eliminates the need for calibration and reduces time spent on maintenance. |
| Enhanced Alarming Capabilities | Configurable alarms and relay outputs provide fast, unmistakable warnings so personnel can take immediate action. |
| Industry-Standard Protocols | Support for industry-standard communication protocols allow the Optio XP to seamlessly integrate with existing infrastructure. |
| Strobe & Horn Output | Provides a direct output port for local audible and visual alarm devices. |
| Multiple I/O Options | Flexible analog, digital, and relay outputs deliver adaptability for any application, whether as a standalone device or integrated into a comprehensive safety system. |
| Wireless Communication | Reduce setup expenses and gain operational flexibility by avoiding costly cable installation. |
| CO | H2 | O2 | CH4 | |
|---|---|---|---|---|
| Sensor Technology | Electrochemical (EC) | Electrochemical (EC) | Electrochemical (EC) | NDIR |
| Range | 0–1000 ppm | 0–2000 ppm | 0–25% vol | 0–5% VOL |
| Life Expectancy | > 2 years | > 2 years | > 2 years | |
| Response Time | T90 < 30 sec | T90 < 35 sec | T90 < 10 sec | T90 < 15 sec |
| Other Sensor Types | Ammonia (NH3), Carbon Dioxide (CO2), Chlorine (Cl2), Hydrogen Chloride (HCl), Nitric Oxide (NO), Nitrogen Dioxide (NO2), Ozone (O3), Sulfur Dioxide (SO2), Volatile Organic Compounds (VOCs), Silane (SiH4 / GeH4), Hydrogen Fluoride (HF3), Ethylene Oxide (C2H4O / EtO), Formaldehyde (CH2O), Hydrogen Cyanide (HCN), Carbon Disulfide (CS2), Carbonyl Sulfide (COS), Ethanol (C2H5OH), Helium (He), Ethyl Alcohol (C2H5OH), Propane (C3H8), Nitrous Oxide (N2O), Phosphine (PH3), Jet Propellant 8 (JP8), Fluorine (F), Chlorine Dioxide (ClO2). | |||
| Additional gases / ranges available. Contact sales for more information. | ||||
| Electrical | |
|---|---|
| Operating Voltage (Wired) | 10–32 VDC, or 100–240 VAC, 50/60 Hz |
| Power Consumption (Wired) | Minimum 4 mA @ 24 VDC; Maximum 146 mA @ 24 VDC |
| Power Consumption (Wireless) | Up to 1 year battery life |
| Mechanical | |
|---|---|
| Enclosure | Aluminum pressure die-casting (XD-120win) limatherm (NEMA 7X) |
| Dimensions | 8.75 × 8.25 × 5.5 in (222 × 210 × 140 mm) |
| Weight | 10 lb (4.5 kg) |
| Environmental | |
|---|---|
| Operating Temp. | -40°F to +140°F (-40°C to +60°C) |
| Operating Humidity | 0-99% RH non-condensing |
| Rating | Class I Division I Groups BCD, Type 4X; Class I, Zone I, AEx d IIC, IP66 |
| Communication Interfaces | |
|---|---|
| Interface | Modbus RTU (RS485), wireless |
| I/O Capabilities | |
|---|---|
| Relay Outputs | 4 × SDPT 2 A @ 30 VDC, 0.5 A @ 120 VAC (configurable fail-safe / normal operation) |
| Analog Outputs | 2 × 4–20 mA |
| Alarms | |
|---|---|
| Trouble Alarms | Sensor failure (high / low), communication error, or internal fault |
| Relay Logic | AND/OR logic based on single or multiple sensor inputs |
| Custom Alarms | 4 alarm levels per sensor with hysteresis and hold-to-alarm timing |
| Wireless Features | |
|---|---|
| Battery Life | Up to 1 year |
| Wireless Range | Up to 2 mi (3.2 km) with external antenna; up to 0.5 mi (0.8 km) with internal antenna |
| Frequency Band | License-free 915 MHz |
| Protocol | Modbus RTU over wireless |
| Gateway Capacity | Up to 247 Modbus gateways, each supporting up to 32 wireless multi-gas monitors |
| Hazardous Location Rating | Class I Division I Groups BCD, Type 4X; Class I, Zone I, AEx d IIC, IP66 (enclosure only) |
| IECEx | Ex d II C, IP68 (enclosure only) |
| ATEX | 94/9/EC, EN50014, EN 50018 (enclosure only) |
| FCC Part 15 | Wireless operation approval |

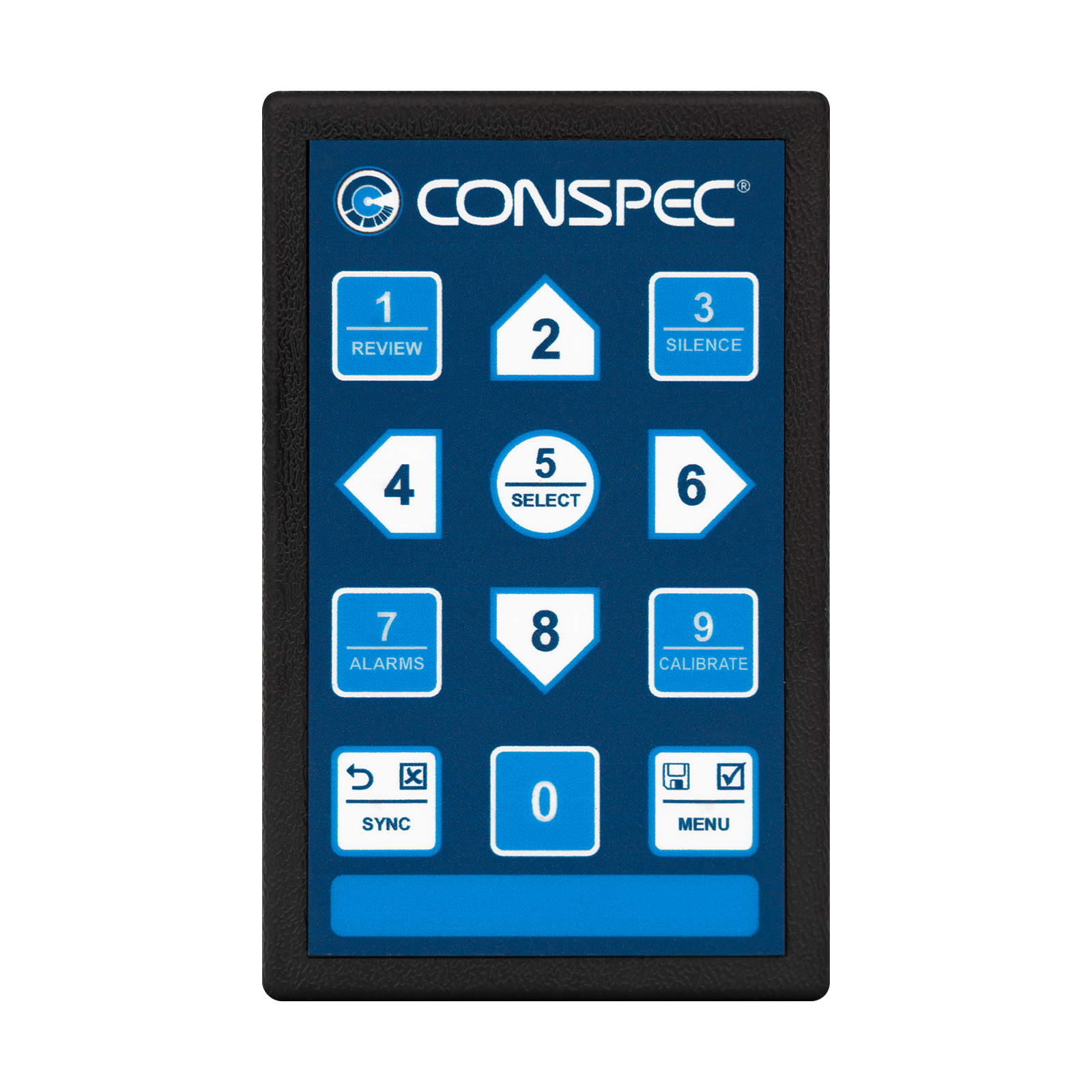

| 911118-CPM | Infrared Remote Control |
| P1879-XX-YYYY | Calibration Kit |
| XR-XXXX-YY | Limatherm XP 4-Way Junction Box |
