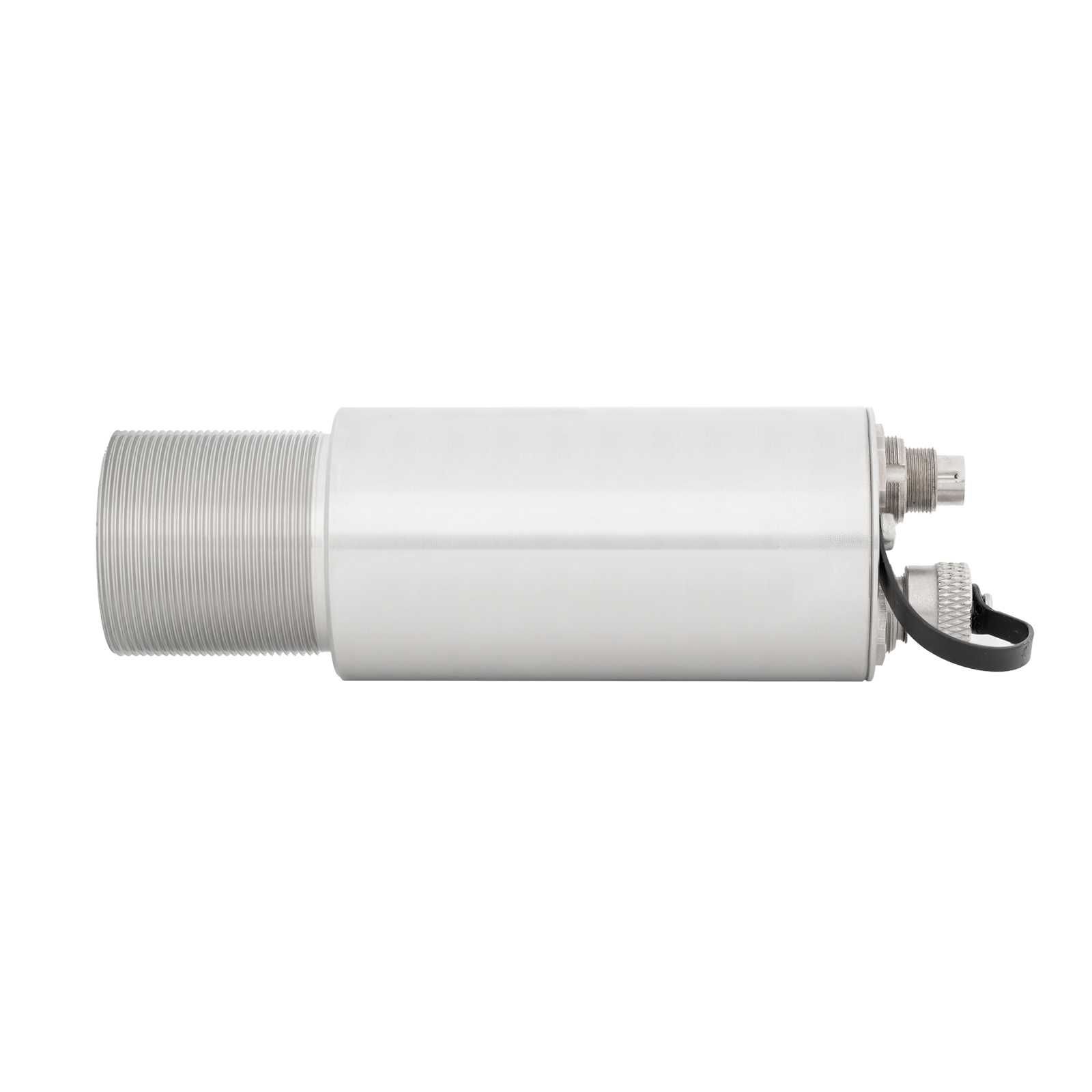

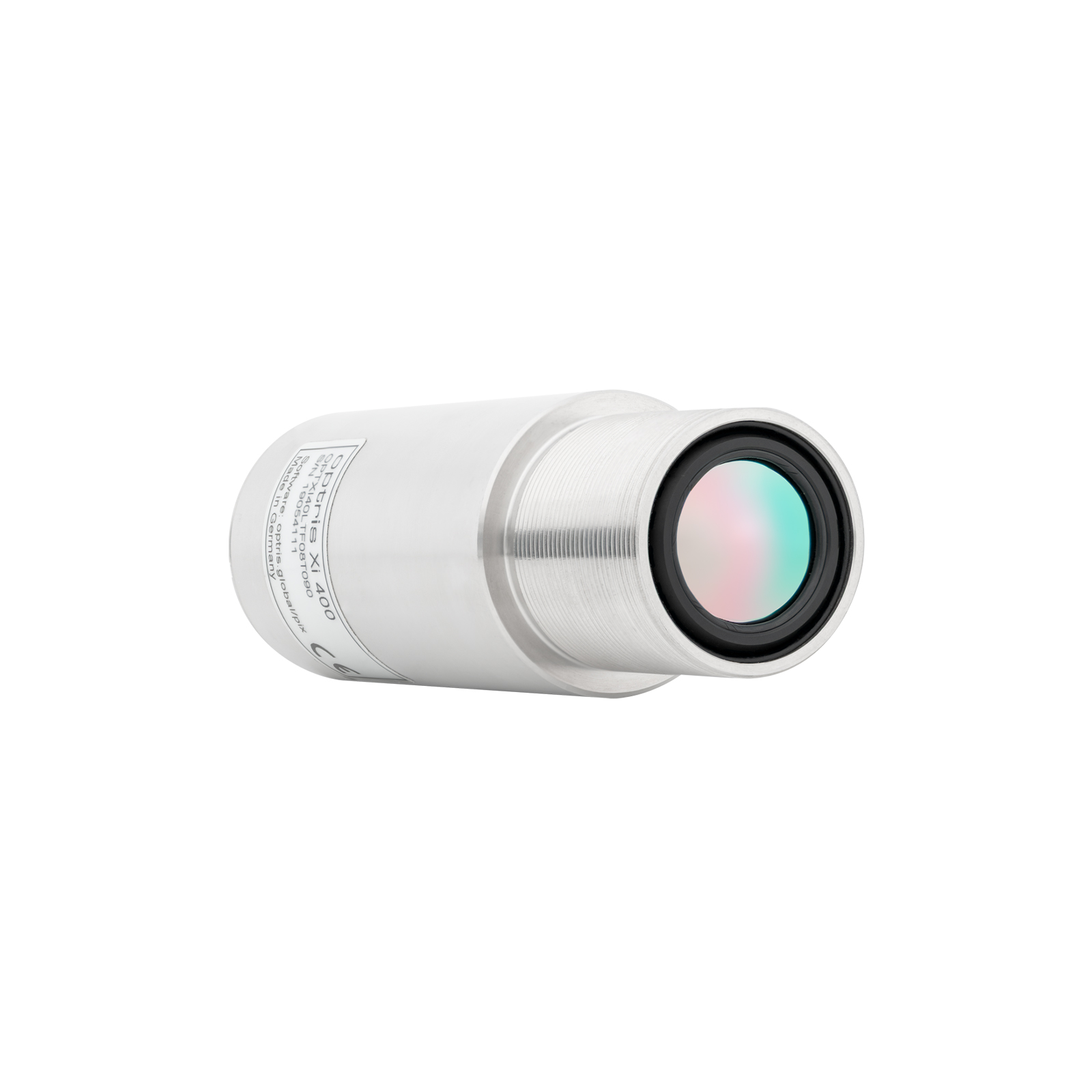

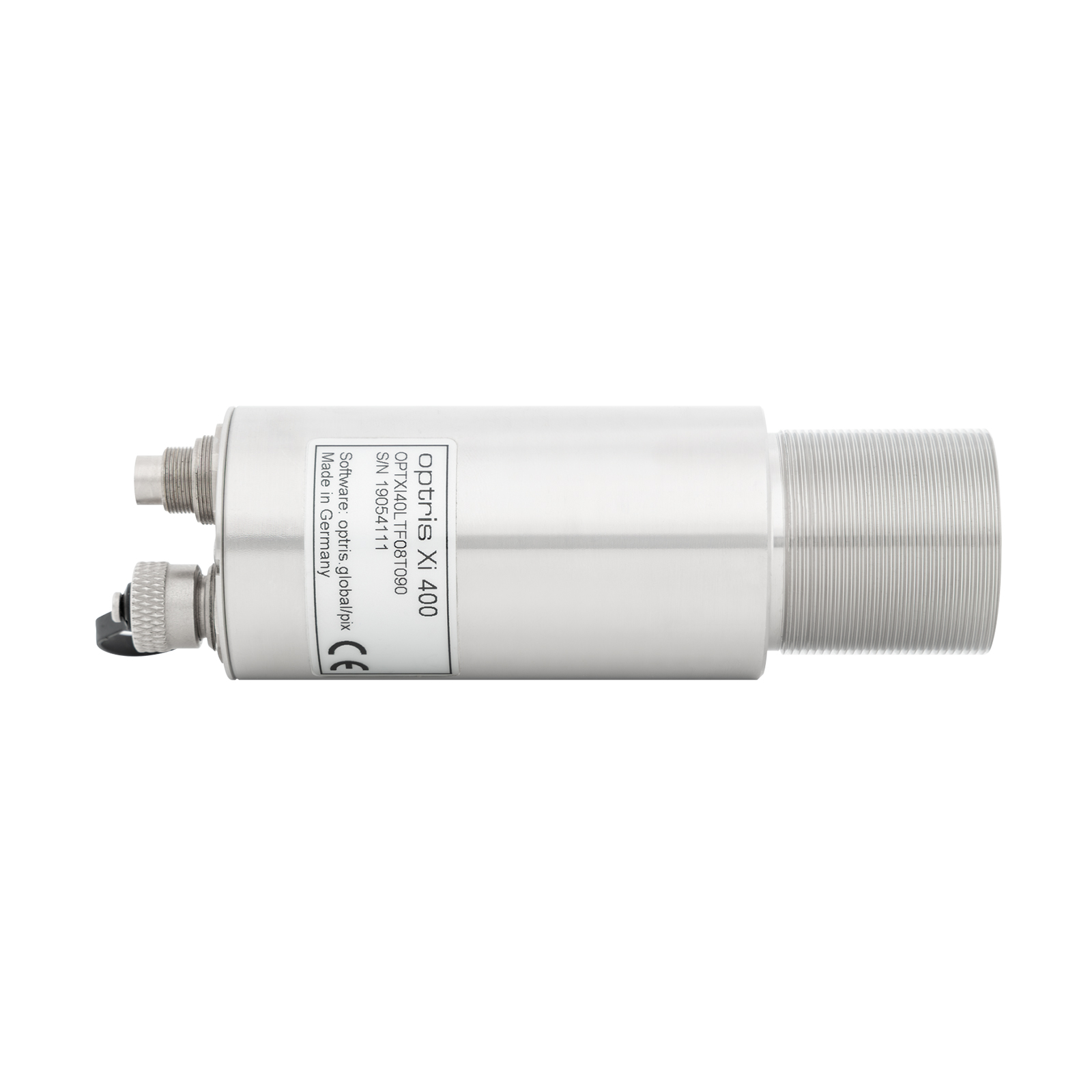

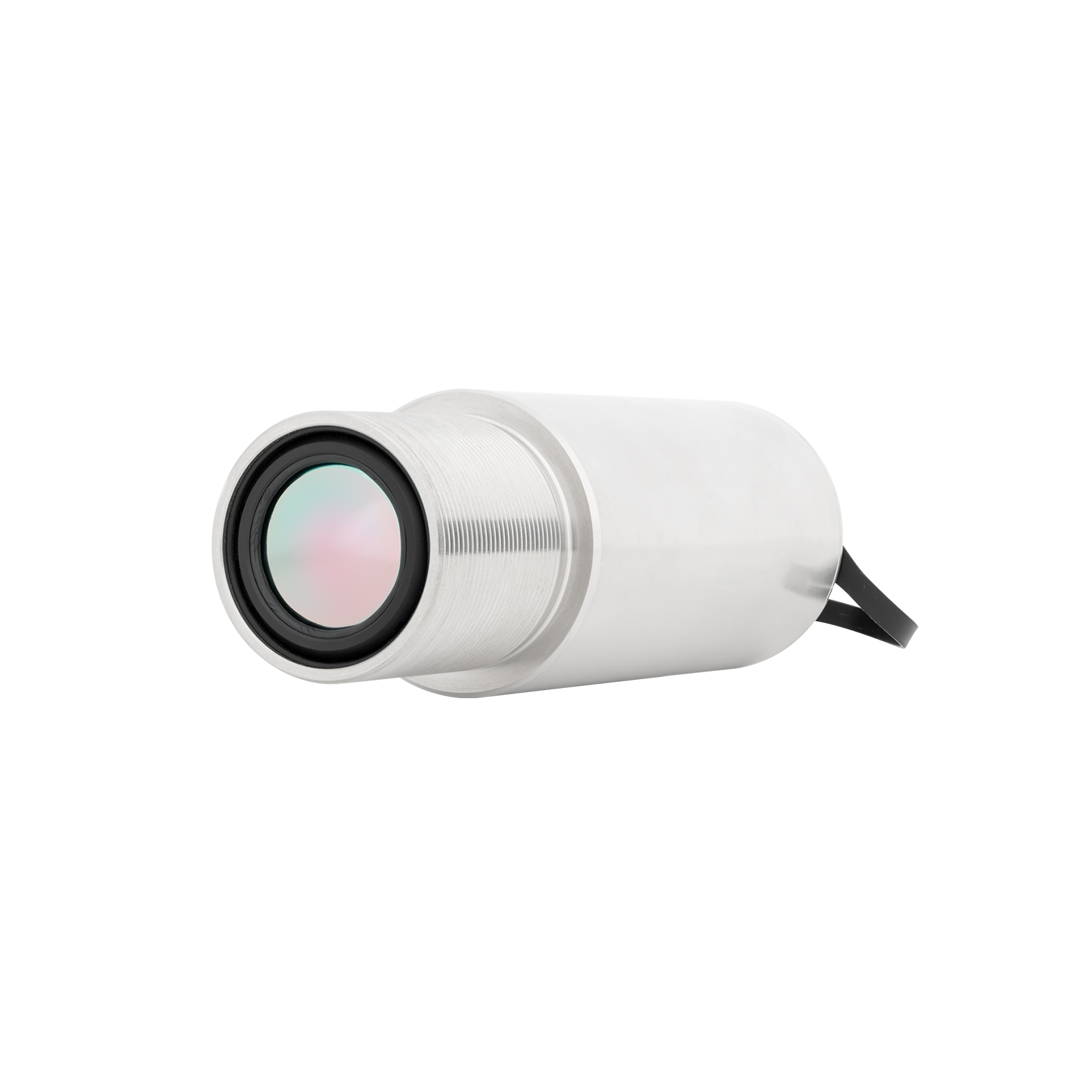

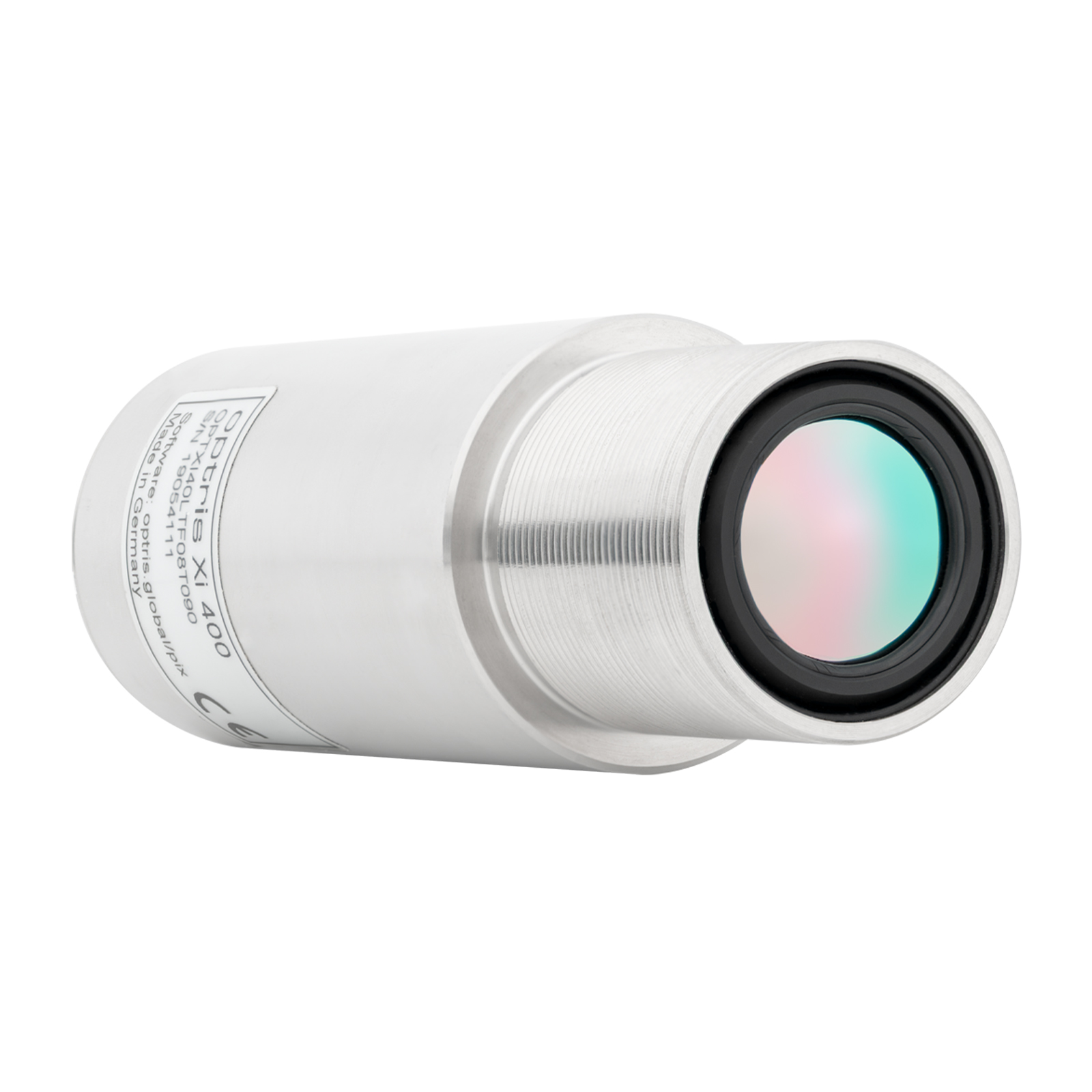

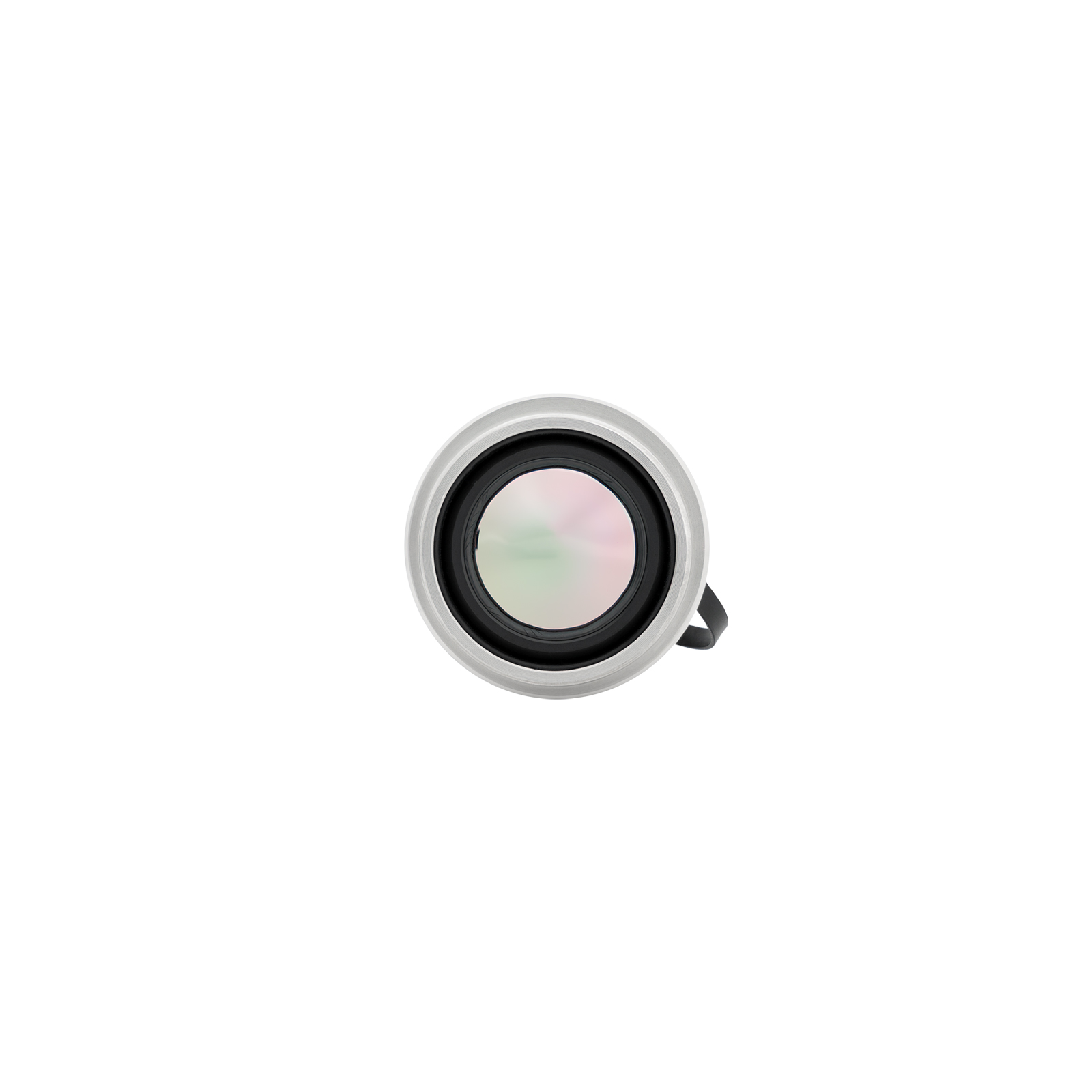

The newly developed Optris Xi 400 thermal imaging camera combines the benefits of a robust, compact pyrometer and an advanced IR camera. The 80 Hz frame rate allows for the monitoring of fast thermal processes, even including a line-scan function. The spot finder IR camera has an optical resolution of 382 x 288 pixels and comes with an extensive ready-to-use package – including a versatile image processing software.
The semi-autonomous sensor — in addition to traditional PX and software-based operations, makes the new Optris Xi 400 a smart spot finder IR camera with analog or digital outputs, seeking the target on its own. The industrial imager Optris Xi 400 is versatile and perfectly suited for a multitude of measuring tasks (e.g. mechanical engineering or multi-sensor applications)
| High-Resolution Thermal Imaging | 382 × 288 pixel industrial thermal imager with precise temperature measurement from –20 °C to 900 °C (–4 °F to 1652 °F) |
| Compact Rugged Design | Small, rugged camera with motorized focus |
| Exceptional Distance-to-Spot Ratio | Distance-to-spot ratio up to 390:1 with sighting capabilities for accurate long-range measurement |
| Fast Frame Rate | 80 Hz frame rate for monitoring fast thermal processes |
| Comprehensive Package | Ready-to-use package including versatile image processing software with line-scan functionality and connection cables |
| Thermal | |
|---|---|
| Optical Resolution | 382 × 288 pixels |
| Detector | FPA, uncooled (17 µm pitch) |
| Spectral Range | 8–14 µm |
| Temperature Ranges | –20 to 100 °C; 0 to 250 °C; 150 to 900 °C¹; 200 to 1500 °C (option) |
| Frame Rate | 80 Hz / 27 Hz |
| Optics (FOV) | 18° × 14° (f = 20); 29° × 22° (f = 12.7); 53° × 38° (f = 7.7); 80° × 54° (f = 5.7) |
| Microscope Lens (FOV) | 18° × 14° (f = 20); smallest measuring spot (IFOV): 80 µm |
| Focus | Manual motor focus |
| Optical Resolution (D:S) | 390:1 (18° optics) |
| Thermal Sensitivity (NETD) | 80 mK |
| Accuracy | ±2 °C or ±2%, whichever is greater |
| Interfaces | |
|---|---|
| PC Interface | USB 2.0 / optional USB to GigE (PoE) conversion |
| Process Interface (PIF), Standard | 0–10 V input / digital input (max. 24 V) / 0–10 V output |
| Process Interface (PIF), Industrial | 2 × 0–10 V inputs / digital input (max. 24 V) / 3 × 0/4–20 mA outputs / 3 × relay (0–30 V / 400 mA) / fail-safe relay |
| Cable Length | |
|---|---|
| USB | 1 m (standard); optional 3 m, 5 m, 10 m, 20 m |
| Mechanical | |
|---|---|
| Enclosure | Ø36 mm × 100 mm (M30 × 1 thread) |
| Ingress Protection | IP67 (NEMA 4) |
| Weight | 216–220 g, depending on lens; without mounting bracket |
| Shock / Vibration | IEC 60068-2-27 (25G and 50G); IEC 60068-2-6 (sinusoidal); IEC 60068-2-64 (broadband noise) |
| Environmental | |
|---|---|
| Ambient Temperature | 0 to 50 °C |
| Electrical | |
|---|---|
| Power Supply | USB |
| Airports & Aircraft Hangars |
| Warehouse & Storage Facilities |
| Manufacturing & Food Processing |
| Diesel Generators & Fuel Storage |
| Battery Rooms & Charging Facilities |
| Oil & Gas Facilities |
| Refineries & Cogeneration Plants |
| Chemical & Hydrogen Plants |
| Tank Farms |
| Compressor Stations |
| Paint Booths |
| Paint & Solvent Storage Facilities |
| Recycling Centers |
| LPG / LNG Facilities |
| Power Plants |
| Marine Fuel Loading & Unloading |
| ACXIAPL | Air Purge Laminar |
| ACXIW | Water Cooled Housing |
| ACXIS | Shutter |
