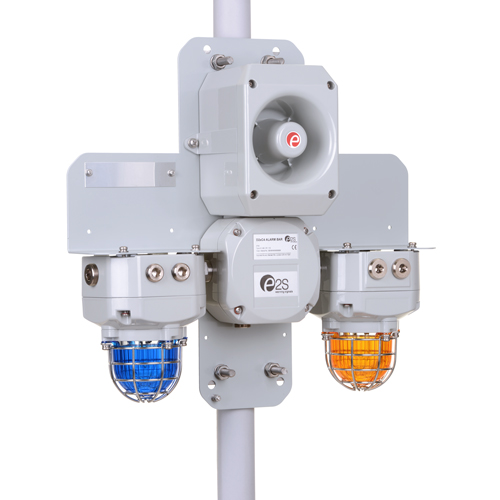

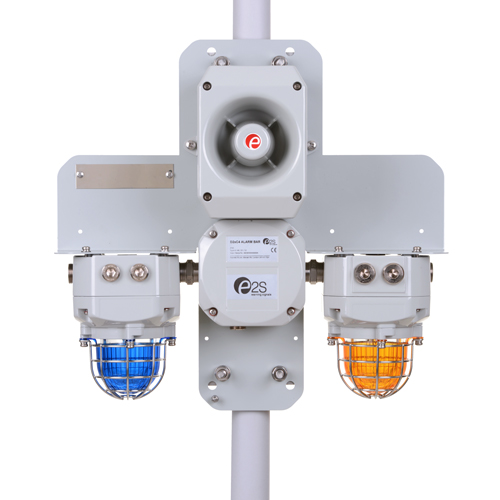

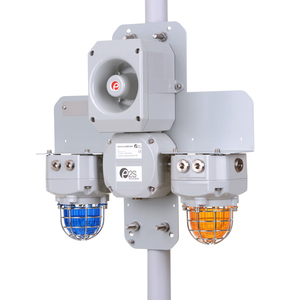

Alarm Horn Sounder:
Maximum output: 116dB(A) @ 1 metre [107dB(A) @ 10ft/3m]
Nominal output: 112dB(A) @ 1m +/- 3dB – Tone 2 [103dB(A) @ 10ft/3m]
No. of tones: 64 (UKOOA / PFEER compliant)
No. of stages: 4
Volume control: Adjustable -12dB(A) [Tone 2]
Effective range: 125m/410ft @ 1KHz
Synchronisation: Automatic synchronisation
LED Beacon/Light:
Source: Array of 4 x High Power Cree® LED’s
Eff. Intensity cd: 73.4 cd UL1638 Private mode fire
Eff. Intensity cd: 180 cd UL1638 General signaling
Peak Intensity cd: 300,000 cd
Eff. Intensity cd: 87 cd High power steady
Lens colours: Amber, Blue, Clear, Green, Magenta, Red & Yellow
Synchronisation: Synchronised 1Hz, 1.5Hz and 2Hz flash rates
General:
Voltages DC: 24V dc, 48V dc
In rush: 2.1A for <10ms
Voltages AC: 115Vac, 230Vac
Ingress protection: IP rating per EN60529:IP66
Type rating per UL50E/NEMA250:4/4X/3R/13
Enclosure material: Marine grade LM6 aluminum alloy
Enclosure colour: Red or Grey, custom colours available on request
Lens material: Borosilicate glass dome with PC prismatic lens cover
Guard: Stainless Steel dome guard as standard
Cable entries: 2 × 1/2″NPT or 2 x M20x1.5mm
Stopping plug: Stopping plug included
Optional brass, nickel plated or stainless steel
Ground/Earth stud: M5
Terminals: 0.5 – 2.5mm² (20-14 AWG)
Line monitoring: Blocking diode included
EOL can be factory fitted
Operating temp: -40 to +50°C [-40° to +122°F]
Storage temp: -40 to +70°C [-40° to +158°F]
Relative humidity: 95%
MTBF DC: 84.47 years / 739,918 hours – MIL 217
Weight: DC: 4.00kg/8.82Ibs AC:4.50kg/9.92lbs.
Nominal Voltage: In rush: Voltage range: Flash Rate setting: Nominal current [Beacon]: Nominal current [Alarm Horn]:
24V dc 2100mA <9.0ms 24V dc 99.5mA 313mA
48V dc 48V dc 47.4mA 181mA
115V ac 115-120Vac 50/60Hz 68mA 89mA
230V ac 220-230Vac 50/60Hz 70mA 52mA
Current at 1Hz (60fpm) flash mode
Part Code: Identifier: Description:
Product type: D2xC2LD2 Combination Alarm Horn & LED Beacon / Warning Light
Voltage: AC115
AC230
DC024
DC048 115-120Vac 50/60Hz
220-230Vac 50/60Hz
24V dc
48V dc
Cable entries: [e] A
B 2 x M20x1.5
2 × 1/2” NPT
Stopping plug material: [m] N
S Nickel plated brass
Stainless Steel
Guard material & tag: [s] 1
3
5 A4 316 Stainless Steel
A4 316 St/St with Equip. Tag
A4 316 St/St with Equip. Tag & Duty Label
Product version: [v] A UL, cUL, ULC, IECEx, ATEX, CSFM, Ex EAC
Product option:
[o] 1
T
X Standard product
Tropicalisation
Custom configuration – contact E2S
Enclosure colour: [x] R
G
S Red
Grey
Special colour – contact E2S
Lens colour: [y] A, B, C
G, M, R, Y Amber, Blue, Clear
Green, Magenta, Red, Yellow
Accessories:
SP65-0001-A4
SP65-0003-A4 Pole Mount Bracket Kit St/St A4 (316)
Sunshade – St/St A4 (316)
UL/cUL File ref: E245313, E230764
IECEx certficate: IECEx ULD 14.0004X
ATEX certificate: DEMKO 14 ATEX 4786493904X
CSFM listing: 7300-2279:0500, 7136-2279:0503
D2xB1LD2 LED Beacon component:
NEC / CEC: Class I Div 2 ABCD T4 Ta -40°C to +50°C
Class I Div 2 ABCD T4A Ta -40°C to +40°C
Class II Div 2 EFG T6 Ta -40°C to +50°C
Class III Div 1&2 Ta -40°C to +50°C
NEC: Class I Zone 2 AEx nA IIC T4 Gc (Ta -40°C to +50°C)
Zone 22 AEx tc IIIC 75°C Dc (Ta -40°C to +50°C)
CEC: Class I Zone 2 Ex nA IIC T4 Gc X (Ta -40°C to +50°C)
Zone 22 Ex tc IIIC 75°C Dc (Ta -40°C to +50°C)
IECEx & ATEX: II 3G Ex nA IIC T4 Gc (Ta -40°C to +50°C)
II 3D Ex tc IIIC 75°C Dc (Ta -40°C to +50°C)
D2xB1X10 10J Xenon Beacon component:
NEC / CEC: Class I Div 2 ABCD T2B Ta -40°C to +50°C
Class II Div 2 EFG T5 Ta -40°C to +50°C
Class II Div 2 EFG T6 Ta -40°C to +40°C
Class III Div 1&2 Ta -40°C to +50°C
NEC: Class I Zone 2 AEx nA IIC T2 Gc (Ta -40°C to +50°C)
Zone 22 AEx tc IIIC 95°C Dc (Ta -40°C to +50°C)
CEC: Class I Zone 2 Ex nA IIC T2 Gc X (Ta -40°C to +50°C)
Zone 22 Ex tc IIIC 95°C Dc (Ta -40°C to +50°C)
IECEx & ATEX: II 3G Ex nA IIC T2 Gc (Ta -40°C to +50°C)
II 3D Ex tc IIIC 95°C Dc (Ta -40°C to +50°C)
D2xB1X05 5J Xenon Beacon component:
NEC / CEC: Class I Div 2 ABCD T3 Ta -40°C to +50°C
Class II Div 2 EFG T5 Ta -40°C to +50°C
Class II Div 2 EFG T6 Ta -40°C to +40°C
Class III Div 1&2 Ta -40°C to +50°C
NEC: Class I Zone 2 AEx nA IIC T3 Gc (Ta -40°C to +50°C)
Zone 22 AEx tc IIIC 95°C Dc (Ta -40°C to +50°C)
CEC: Class I Zone 2 Ex nA IIC T3 Gc X (Ta -40°C to +50°C)
Zone 22 Ex tc IIIC 95°C Dc (Ta -40°C to +50°C)
IECEx & ATEX: II 3G Ex nA IIC T3 Gc (Ta -40°C to +50°C)
II 3D Ex tc IIIC 95°C Dc (Ta -40°C to +50°C)
D2xS1 Alarm horn sounder component:
NEC / CEC: Class I Div 2 ABCD T3C Ta -40°C to +70°C
Class I Div 2 ABCD T4 Ta -40°C to +65°C, T4A Ta -40°C to +50°C
Class II Div 2 FG T5 Ta -40°C to +50°C, T6 Ta -40°C to +45°C
Class III Div 1&2 Ta -40°C to +50°C
NEC: Class I Zone 2 AEx nA IIC T4 Gc (Ta -40°C to +50°C)
Zone 22 AEx tc IIIC 90°C Dc (Ta -40°C to +50°C)
CEC: Class I Zone 2 Ex nA IIC T4A Gc X (Ta -40°C to +50°C)
Zone 22 Ex tc IIIC 90°C Dc (Ta -40°C to +50°C
Class II Div 2 EFG T5 Ta -40°C to +50°C
IECEx & ATEX: II 3G Ex nA IIC T4 Gc (Ta -40°C to +50°C)
II 3D Ex tc IIIC 90°C Dc (Ta -40°C to +50°C)
D2xJ1 Junction Box component:
NEC / CEC: Class I Div 2 ABCD T6 Ta -40°C to +50°C
Class II Div 2 FG T6 Ta -40°C to +50°C
Class III Div 1&2 Ta -40°C to +50°C
NEC: Class I Zone 2 AEx nA IIC T6 Gc (Ta -40°C to +50°C)
Zone 22 AEx tc IIIC 55°C Dc (Ta -40°C to +50°C)
CEC: Class I Zone 2 Ex nA IIC T6 Gc X (Ta -40°C to +50°C)
Zone 22 Ex tc IIIC 55°C Dc (Ta -40°C to +50°C)
IECEx & ATEX: II 3G Ex nA IIC T6 Gc (Ta -40°C to +50°C)
II 3D Ex tc IIIC 55°C Dc (Ta -40°C to +50°C)
Stage 1:
[On board] Stage 2:
[Remote] Stage 3:
[Remote]
Steady High Power Flashing 1Hz Triple Strike
Steady Low Power Flashing 1Hz Triple Strike
Flashing 1Hz 2x Flash 2Hz Triple Strike
Flashing 1.5Hz Flashing 2Hz Double Strike
Flashing 2Hz Triple Strike Triple Strike
Double Strike Steady High Power Triple Strike
Triple Strike Flashing 2Hz Double Strike
Note: Remote second and third stage on DC units only
